Z80 - Monoblock Valve w/ Float

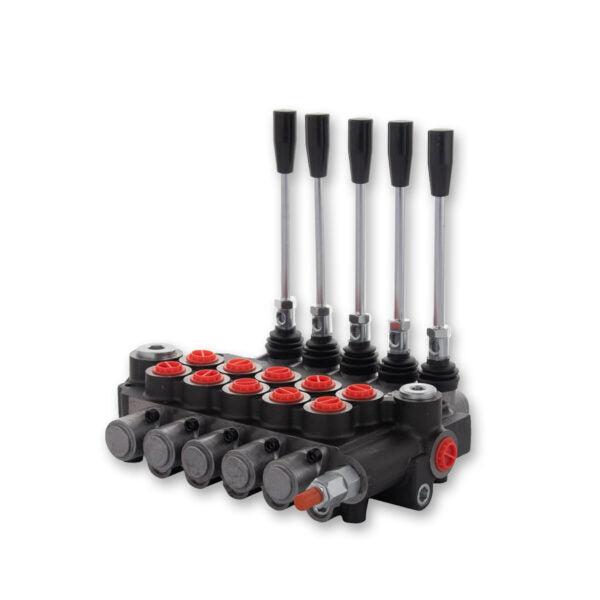

Z80 Series monoblock valve.

The 80L valve group is being upgraded from P80 to Z80 to improve the working parameters. The new valve bodies will be marked Z80 instead of the old P80. The new body has additional machining of the spool bore for higher precision.

Manufactured in Europe by Badestnost.

• Max flow: 80 LPM
• Max nominal pressure on P: 250 bar
• Max pressure on A+B: 300 bar
• Max pressure on T: 50 bar
• Relief valve range: 160-315 bar
• Relief preset range: 220 bar
• Port size T-N: 3/4″ BSPP
• Port size P-A-B: 1/2″ BSPP
• with float
