Z50 - Monoblock Valve

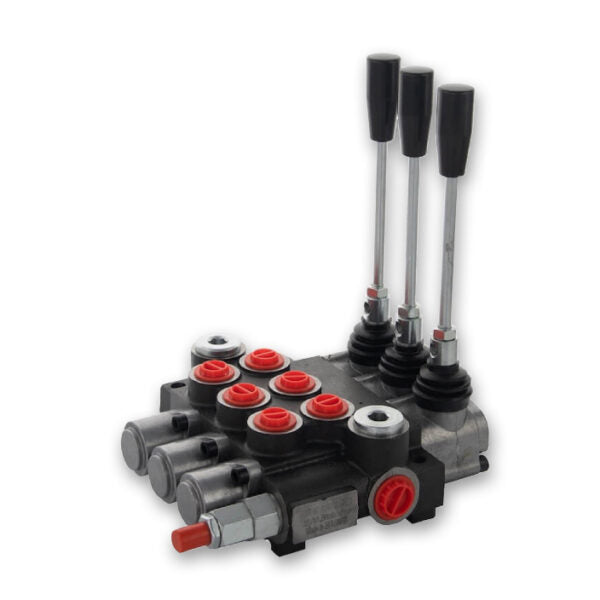

Z50 Series monoblock valve.

The 40L valve group has been upgraded from P40 to Z50 to improve the working parameters. The new valve bodies will be marked Z50 instead of the old P40. The new body has additional machining of the spool bore for higher precision and higher nominal flow rate.

Manufactured in Europe by Badestnost.

• Max flow: 40 LPM
• Max nominal pressure on P: 250 bar
• Max pressure on A+B: 300 bar
• Max pressure on T: 50 bar
• Relief valve range: 160-315 bar
• Relief preset range: 220 bar
• Port size P-T-N: 1/2″ BSPP
• Port size A-B: 3/8″ BSPP
