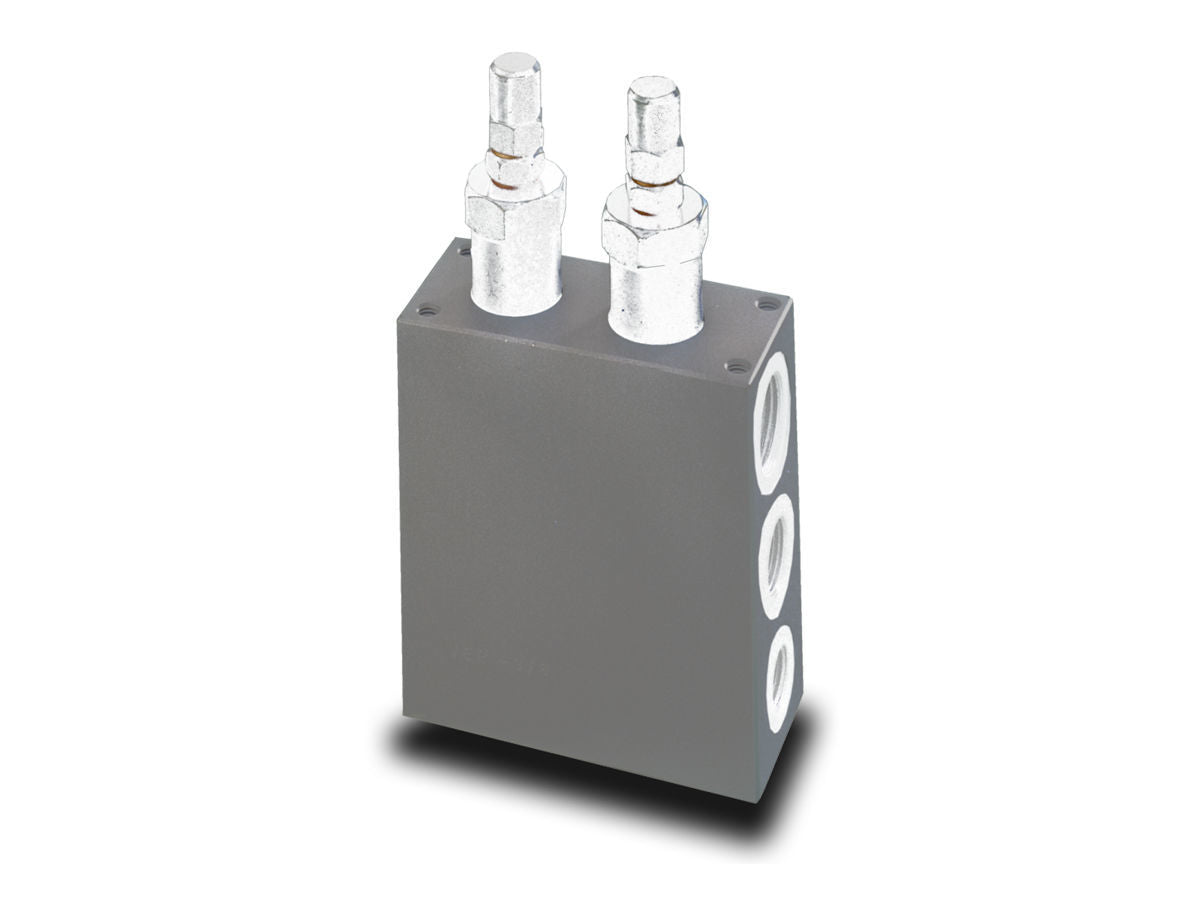

VEP High-Low Unloading Valves

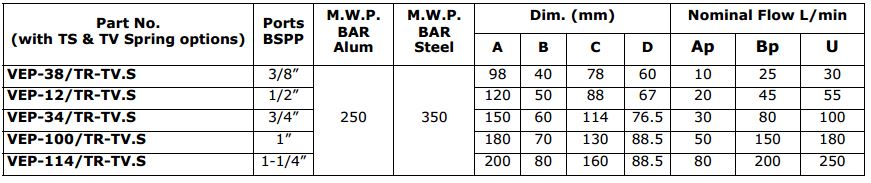

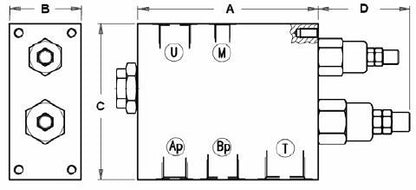

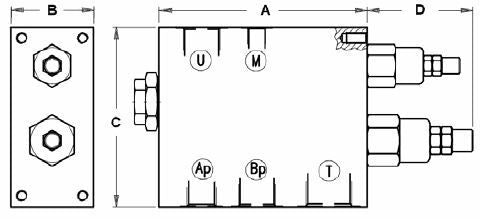

VEP Series- These valves are utilised in two pump systems to provide a HIGH-LOW (fast-slow) operation. Fast speed is obtained by utilising both pumps to feed the circuit up to the setting of the bypass valve (VDS on port BP). Slow speed is then available to feed the circuit up to the pressure setting of the master relief valve (VMP on port AP). NB: Port AP uses spring options TS & TR, Port BP uses TB & TV Aluminium body - Steel bodied units available on request - add suffix AC
