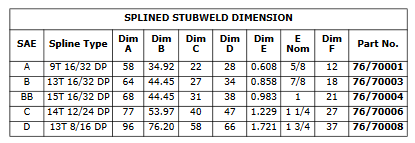

SPLINED STUBWELDS
For SAE Hydraulic Applications

DETAILS AND APPLICATIONS

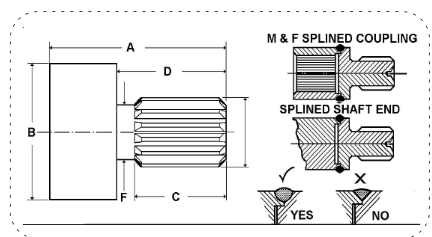

Ideal for use with precision splined hubs for manufacturing of M & F couplings. Stubwelds may also be used for replacing splined ends of worn shafts or manufacturing splined ends on shafts for new equipment.

MACHINING AND WELDING
Machine mated pilot registers and fillets true on both items to be joined. Hold firmly under press or between pressed centres. Preheat to electrode suppliers recommendations. Use alternate welding deposits to fully fix part then fully weld while rotating in horizontal position. Some post heating may be necessary to ensure slow cooling. Use only a special purpose electrode such as SatinCraft or other comparable brand. Use a spraypack type spatter protection coating on spline area while welding. Check clocking error after welding to test alignment.

WARNING
Above information is a guide only. Correct welding and machining operations are entirely the responsibility of the user. Federal or State Occupation Safety Regulations relating to circumferential shaft welding should be observed where applicable.
