PRODUCT DESCRIPTION
SPLINED HUBS
FOR HYDRAULIC PUMPS AND MOTORS
SPLINED HUBS are manufactured from K1146 or K1045 Carbon Steel. OD is machined true to spline axis after broaching. All items are supplied in soft condition and may be induction- or through-hardened. Hub outside diameter reflects a tolerance of -0.000” +0.001”. Length tolerance is ±0.030”. Welding operations should be carried out using a low hydrogen electrode.

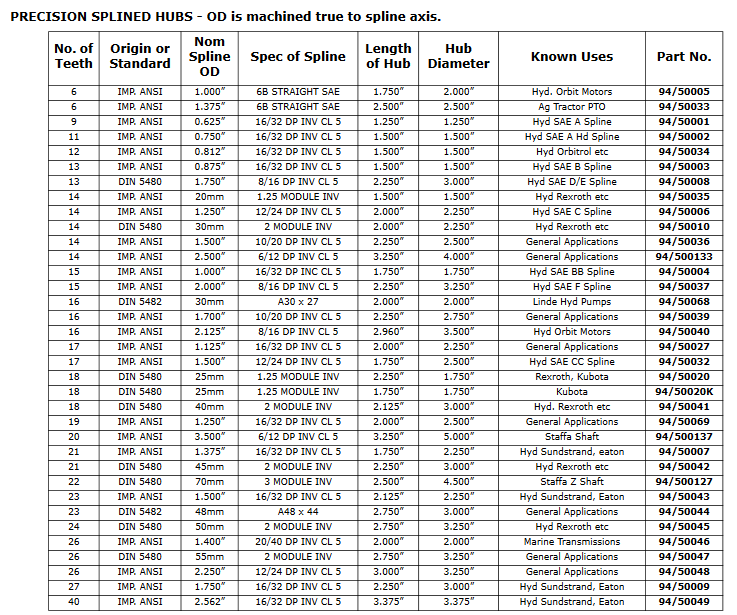

SPLINE DETAILS: Most involute splines below are flat root side fit. They may be used with filled root shafts. Spline tolerance is Class 5 in most cases. Imperial involute splines are to ANSI B92.1-1970. Metric involute splines listed below are to Deutsche Norman DIN 5480. On ANSI splines actual OD of mating shaft will usually be smaller than shown as “Nom Spline OD” below to allow for root clearance.
