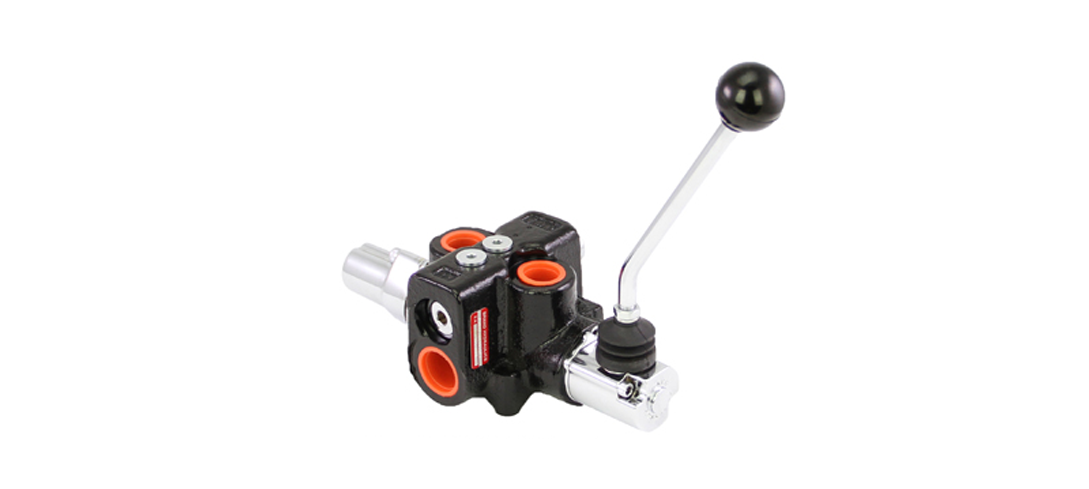

SDCF & DCF Series Monoblock Valves

SDCF combines the features of a four-way directional control valve, a full range pressure compensated by-pass type flow control valve, and an adjustable pilot operated pressure relief valve all in one compact package.

Rated for 0-18 gpm (0-68.1 lpm)
Rated for 3000 psi (207 bar)
Weighs 6-1/2 lbs. (2.9 kg)
30— Micron filtration  recommended

Manufactured By

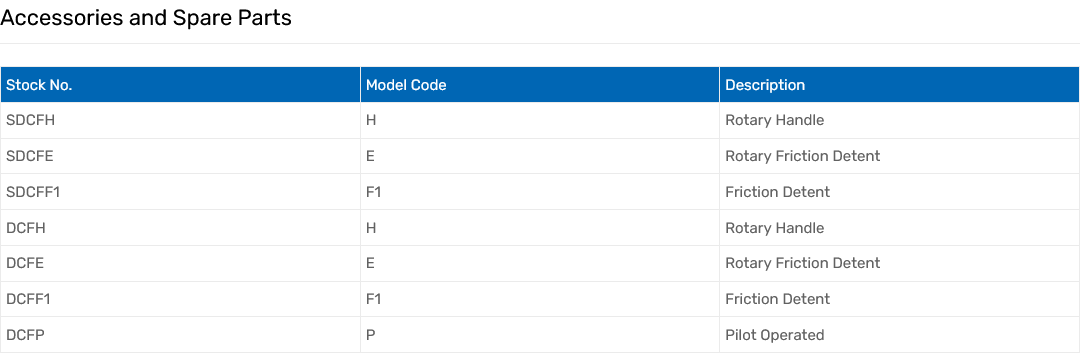

Accessories & Spares

If you require any of these please contact us to add them to your order
