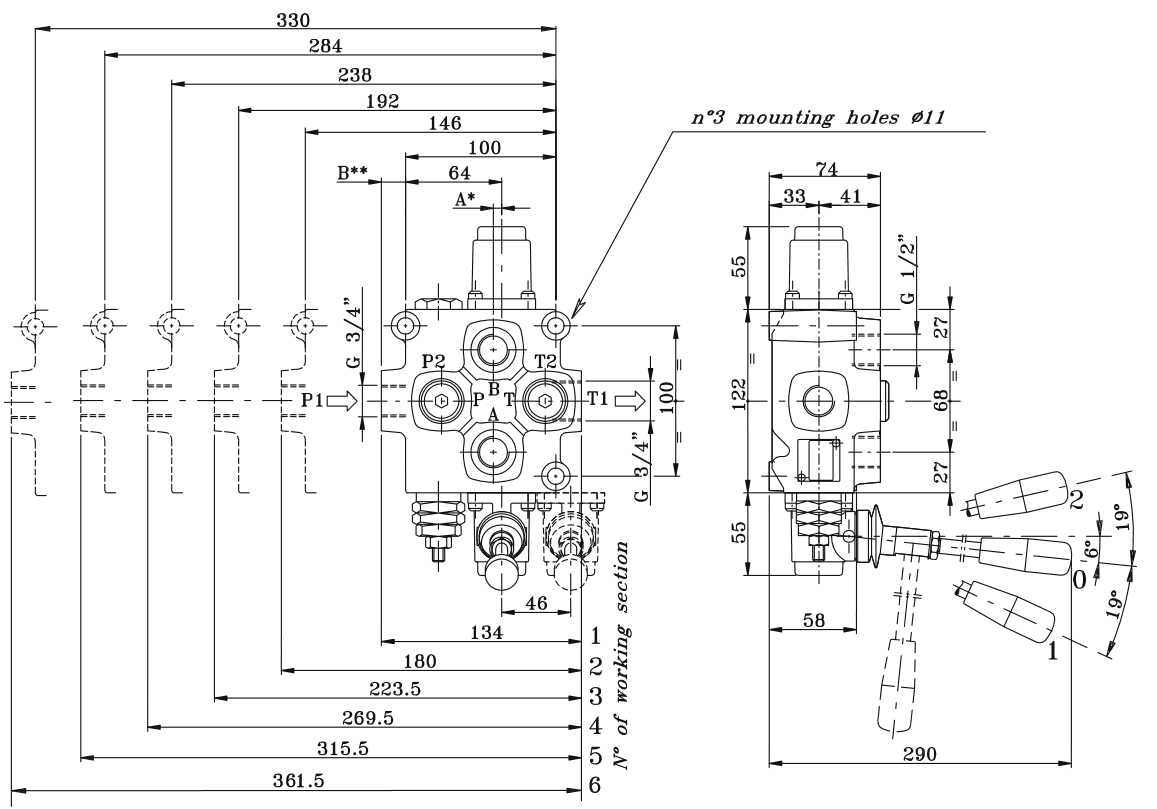

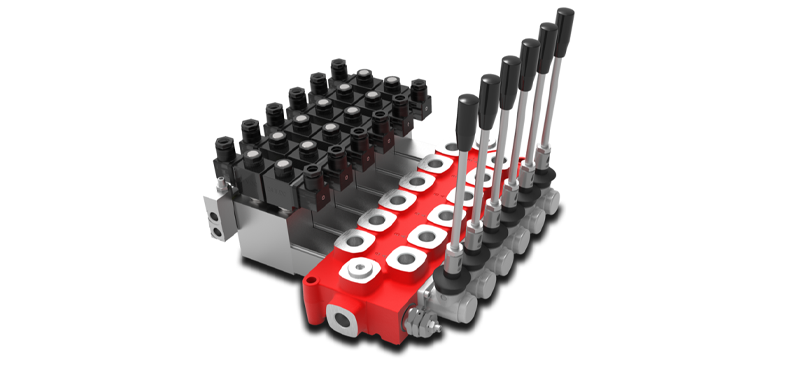

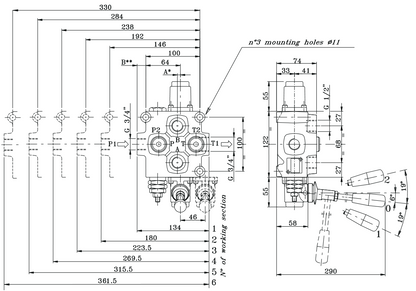

Q95 Series Monoblock Valves

Monoblock valves designed for medium flow rates. They offer a wide range of controls and auxiliary valves and they are suitable for a large variety of applications: Agriculture, Earth Moving Machines, Lifting and Transport, Industrial Vehicles.

Nominal Flow Rating l/min – (US gpm): Q95: 100 (27)
Max. Pressure bar – (psi): 280 (4000)
Number of Sections: 6
Pitch mm (in): 46 (1,81)

Manufactured By

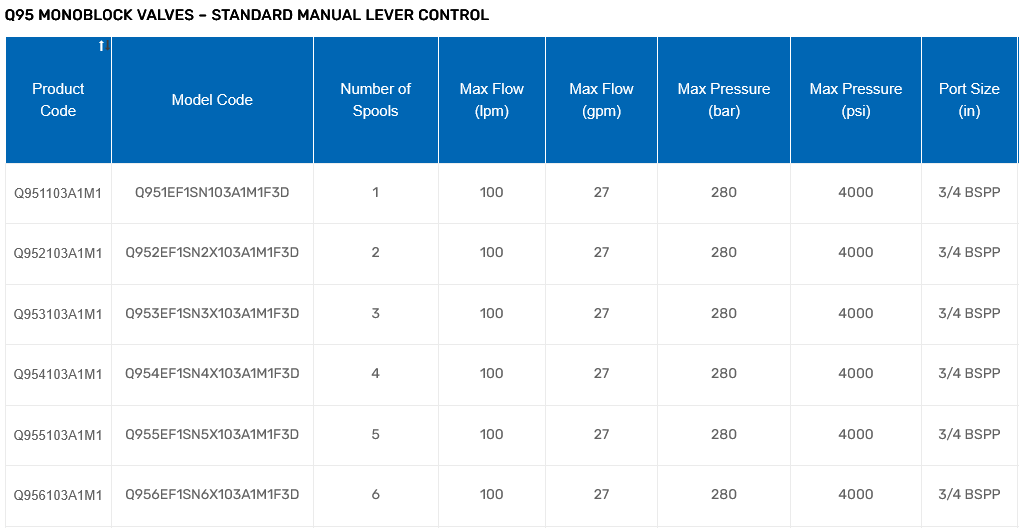

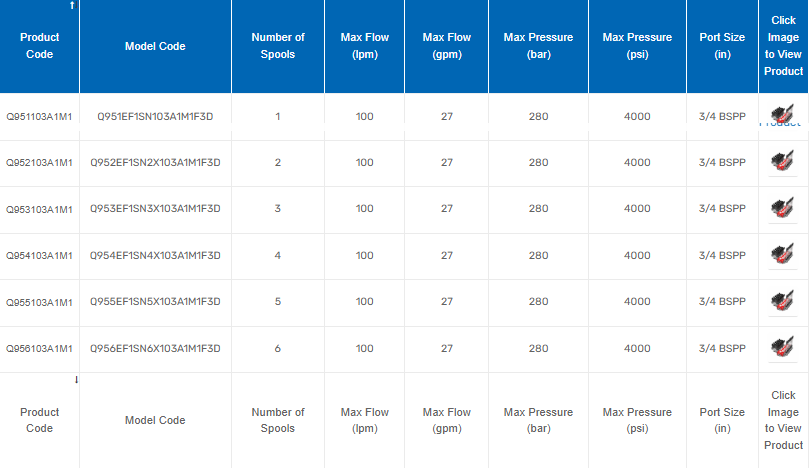

Q951103A1M1

Model Code: Q951EF1SN103A1M1F3D

Q952103A1M1

Model Code: Q952EF1SN2X103A1M1F3D

Q953103A1M1

Model Code: Q953EF1SN3X103A1M1F3D

Q954103A1M1

Model Code: Q954EF1SN4X103A1M1F3D

Q955103A1M1

Model Code: Q955EF1SN5X103A1M1F3D

Q956103A1M1

Model Code: Q956EF1SN6X103A1M1F3D

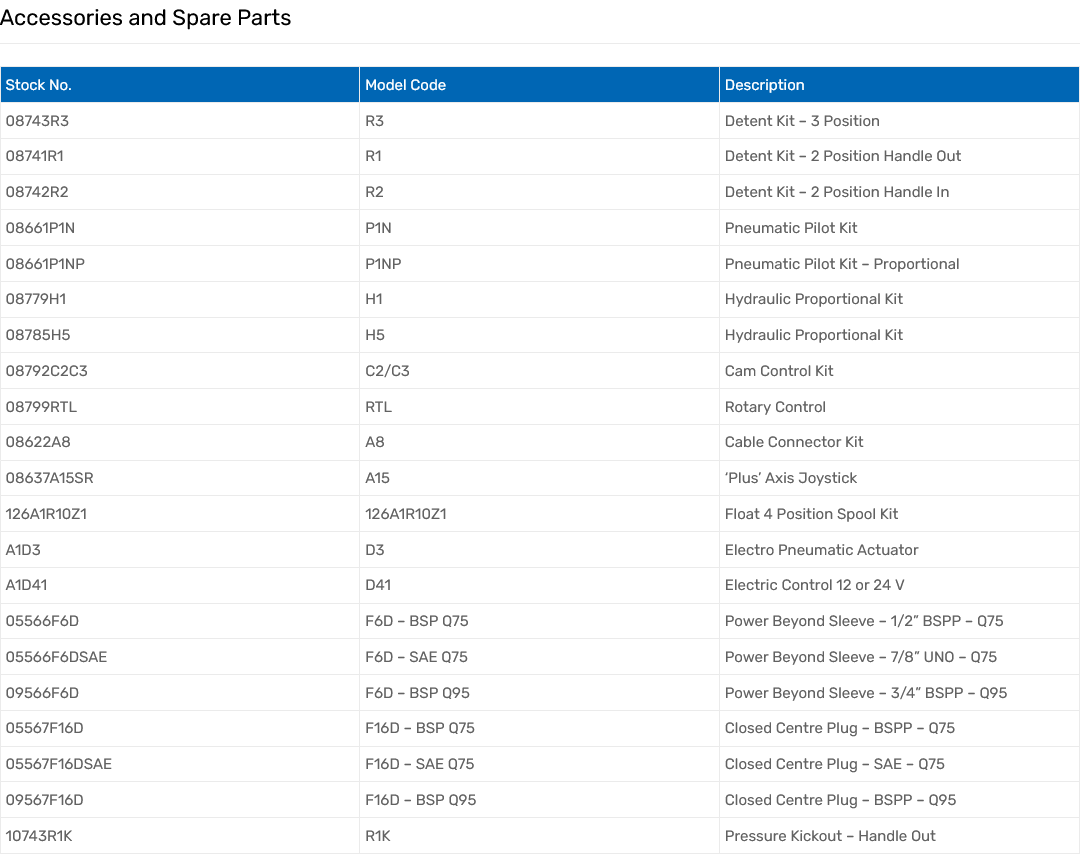

Accessories & Spares

If you need any of these please contact us to add them to your order
