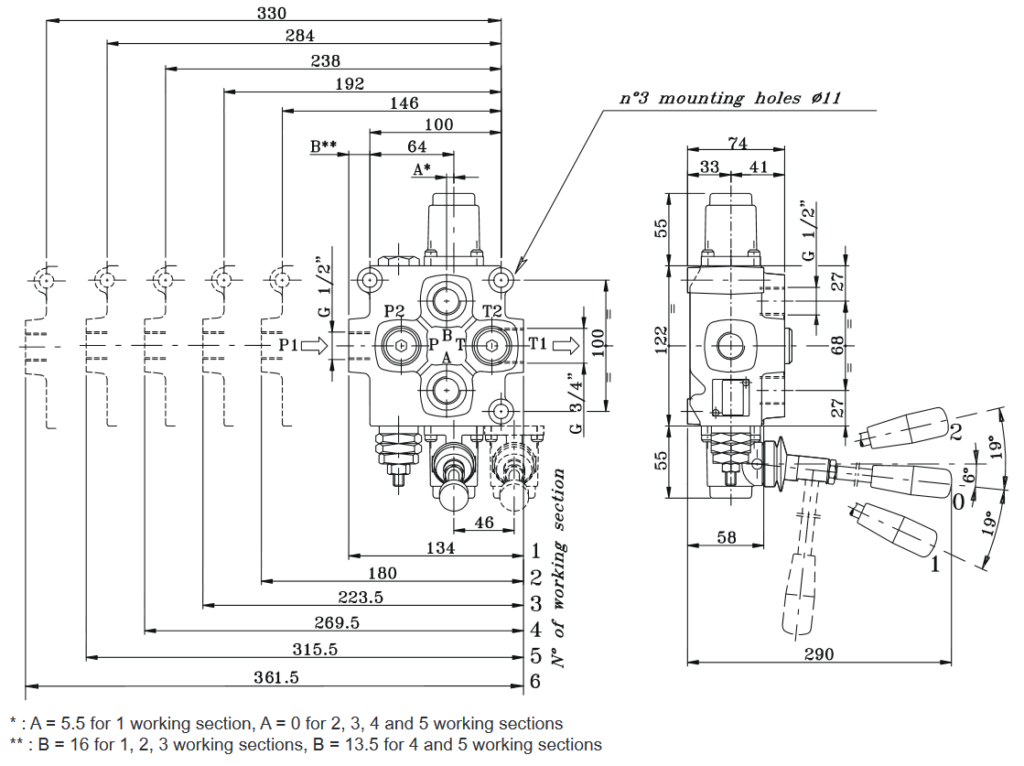

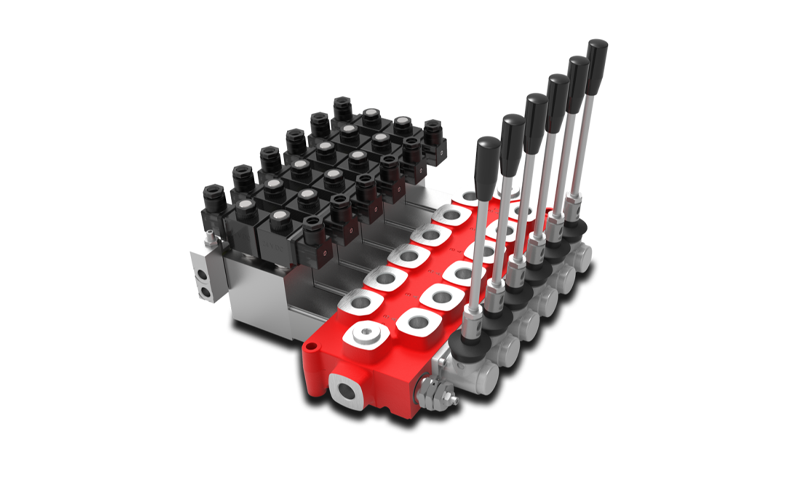

Q75 Series Monoblock Valves

Monoblock valves designed for medium flow rates offer a wide range of controls and auxiliary valves and they are suitable for a large variety of applications.

Nominal Flow Rating l/min – (US gpm): Q95: 100 (27)
Max. Pressure bar – (psi): 280 (4000)
Number of Sections: 6
Pitch mm (in): 46 (1,81)

 Manufactured By

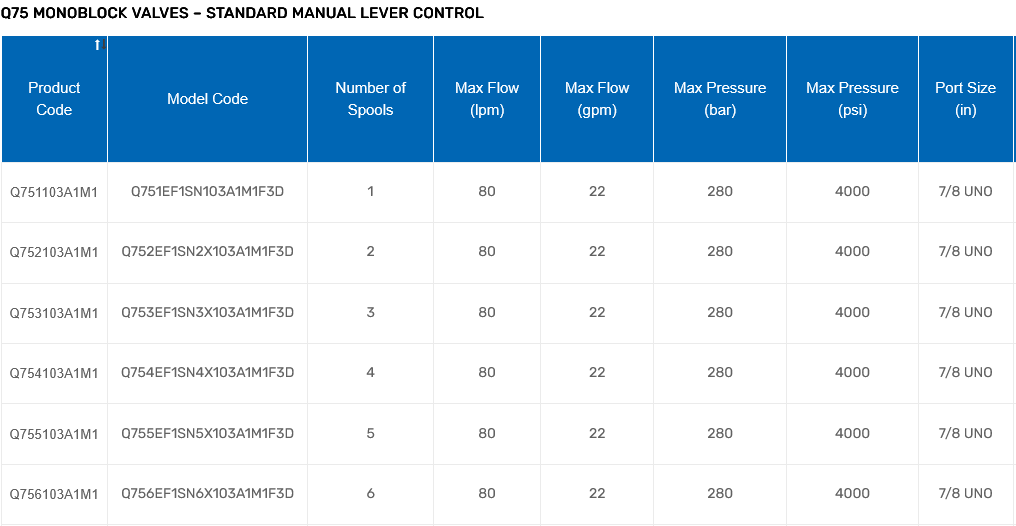

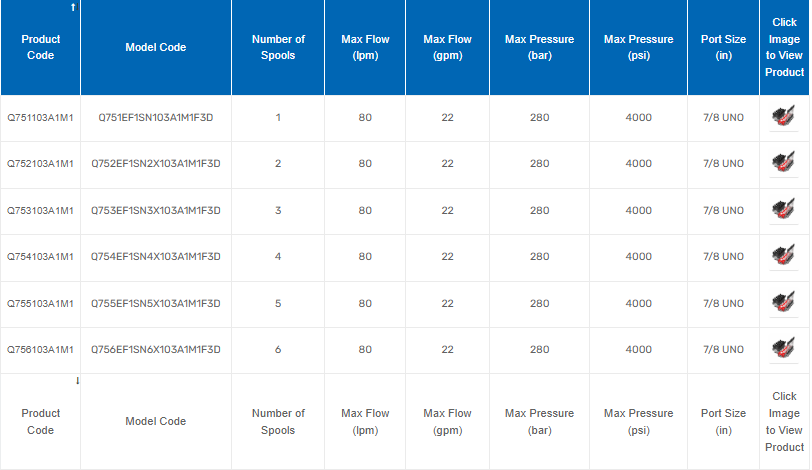

Q751103A1M1

Model Code: Q751EF1SN103A1M1F3D

Q752103A1M1

Model Code: Q752EF1SN2X103A1M1F3D

Q753103A1M1

Model Code: Q753EF1SN3X103A1M1F3D

Q754103A1M1

Model Code: Q754EF1SN4X103A1M1F3D

Q755103A1M1

Model Code: Q755EF1SN5X103A1M1F3D

Q756103A1M1

Model Code: Q756EF1SN6X103A1M1F3D

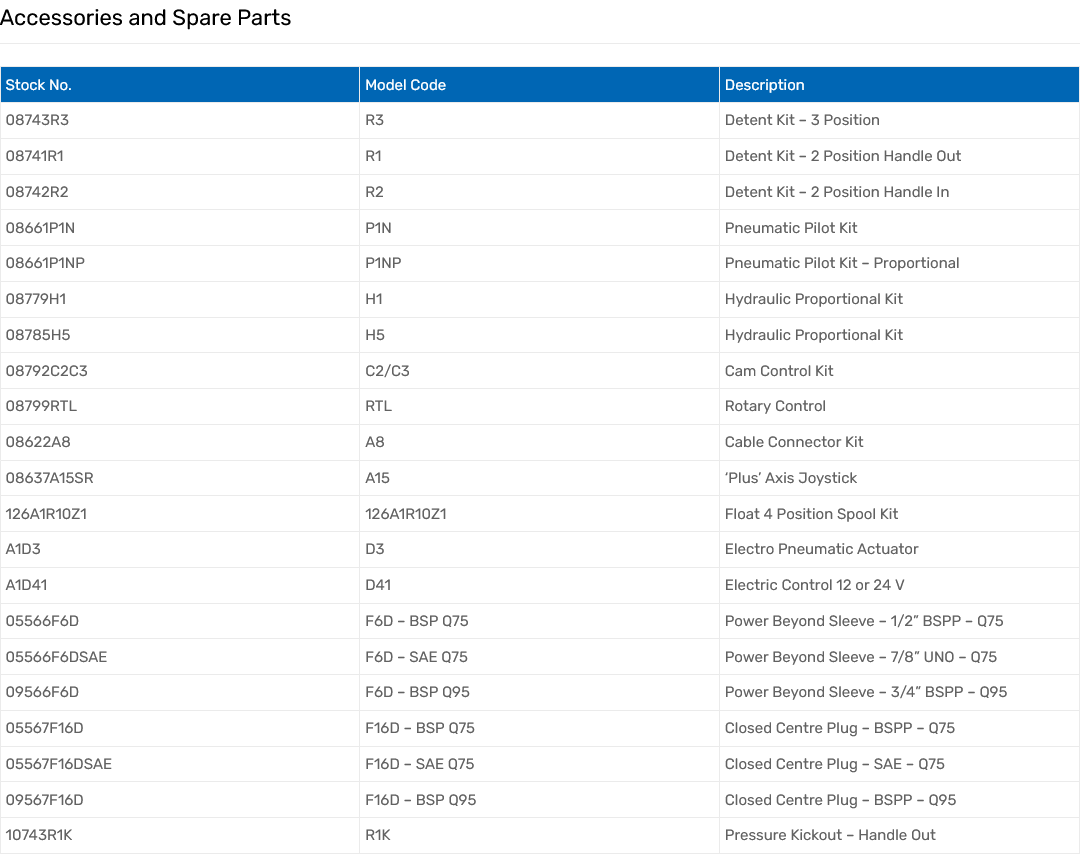

Accessories and Spares

If you need any of these please contact us to add them to your order
