Q45 Series Monoblock Valves

Q45 Series Monoblock Valves

SKU: Q451EF1SN103A1M1F3DS

Price: $354.00
List Price:
Price: $354.00
5% off all orders over $1000 | Ends:
Style
View Cart

Available up to 8 sections, the Q25 and Q45 valves can be used in applications that require low flow rates and compact and versatile hydraulic components.

  • Nominal Flow Rating l/min – (US gpm): Q45: 50 (13)
  • Max. Pressure bar – (psi): 350 (4350)
  • Number of Sections: 8
  • Pitch mm (in): 38 (1,50)
Manufactured By

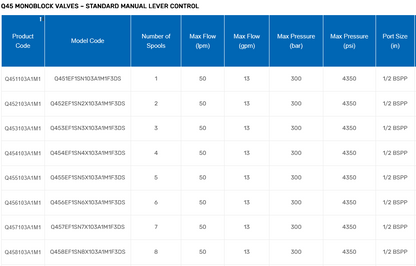

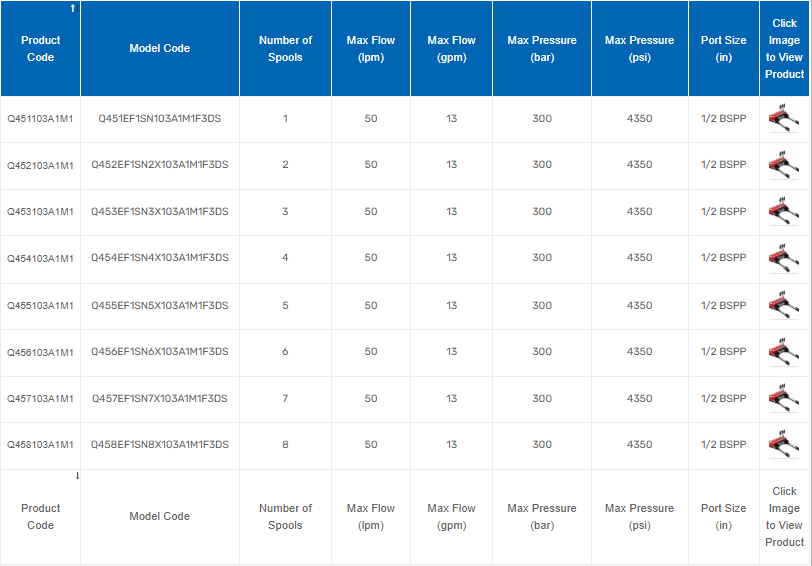

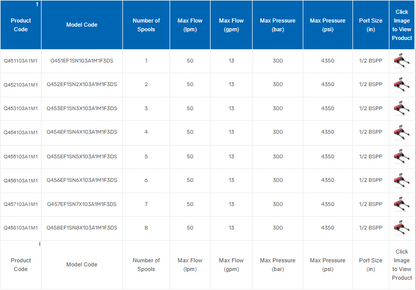

Q451103A1M1

Model Code: Q451EF1SN103A1M1F3DS

Q452103A1M1

Model Code: Q452EF1SN2X103A1M1F3DS

Q453103A1M1

Model Code: Q453EF1SN3X103A1M1F3DS

Q454103A1M1

Model Code: Q454EF1SN4X103A1M1F3DS

Q455103A1M1

Model Code: Q455EF1SN5X103A1M1F3DS

Q456103A1M1

Model Code: Q456EF1SN6X103A1M1F3DS

Q457103A1M1

Model Code: Q457EF1SN7X103A1M1F3DS

Q458103A1M1

Model Code: Q458EF1SN8X103A1M1F3DS

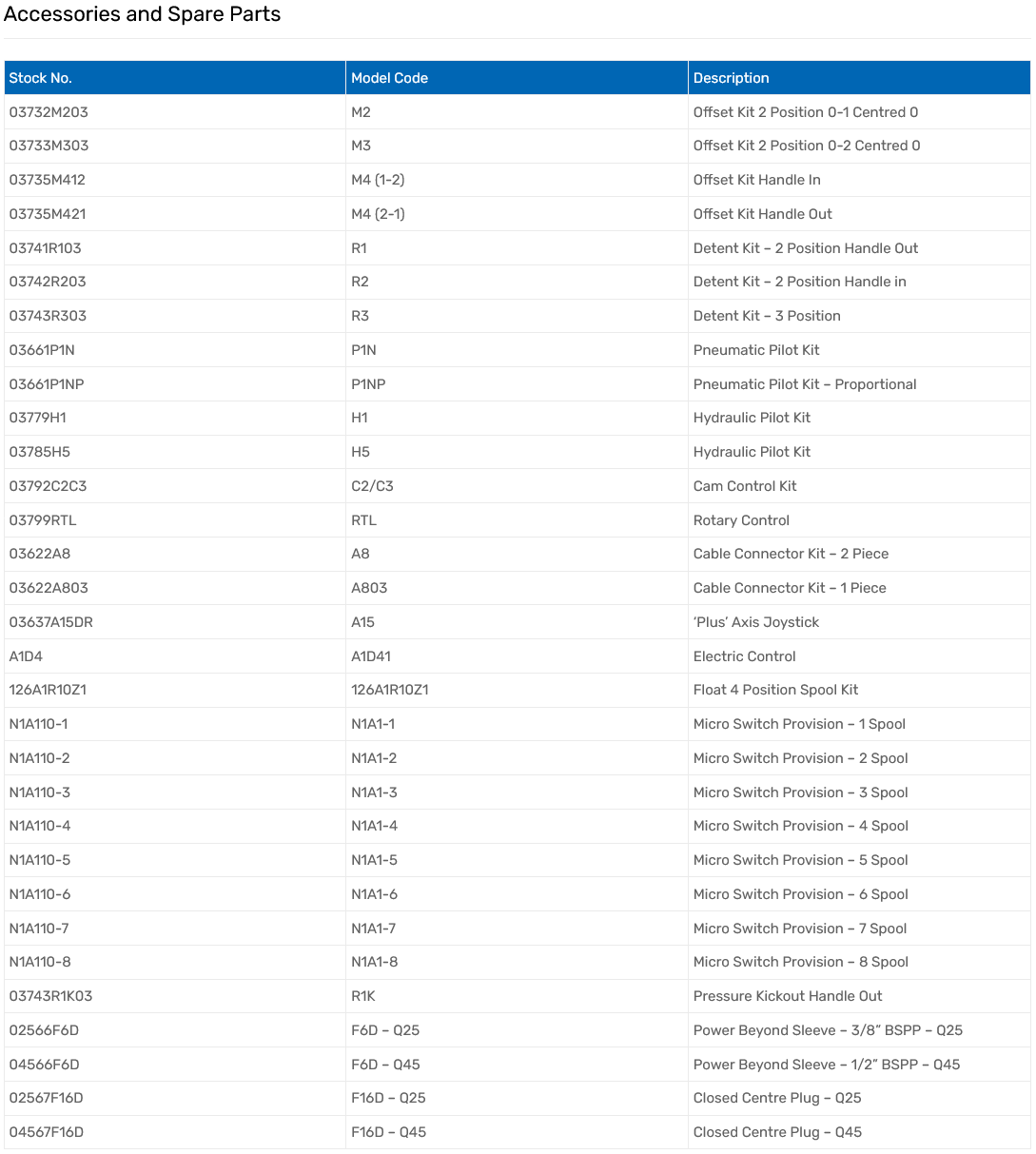

Accessories & Spares

If you need any of these please contact us to add them to your order
