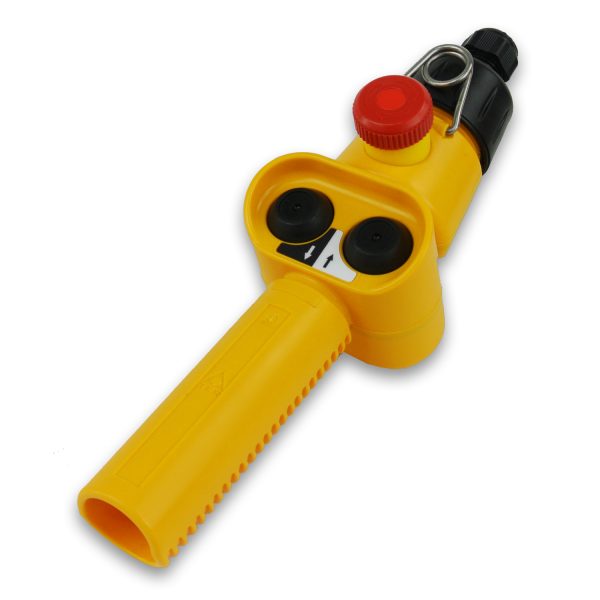

Pendant Controller - CHARLIE

All CHARLIE pendants can be customised to suit your own needs.

• Buttons: 2
• IP Rating: IP65
• Contact: N/O
• Button Function: Momentary
• Max Signal Current: 3 amp
• Max Input Current: 6 amp
• Voltage: 250v AC

Features

FEATURES
• Reduced time and costs for installation and wiring: the
switches are assembled inside the pendant station without
screws, with all the terminals facing the cable inlet and
screws in the opposite direction to facilitate wiring.
• A threaded ring is used to secure the enclosure and cover,
providing easy access to the internal components without
any need for tools or screws.
• Thanks to the hollow handle the control station can be
quickly and easily set down onto a pin.
• The emergency stop mushroom pushbutton complies with
standard EN 418.
• Mechanical life of switches: 1 million operations.
• IP protection degree: Charlie is classified IP65.
• Extreme temperature resistance: -25°C to+70°C.
• All materials and components used are wear resistant and
guarantee protection of the unit against water and dust.
