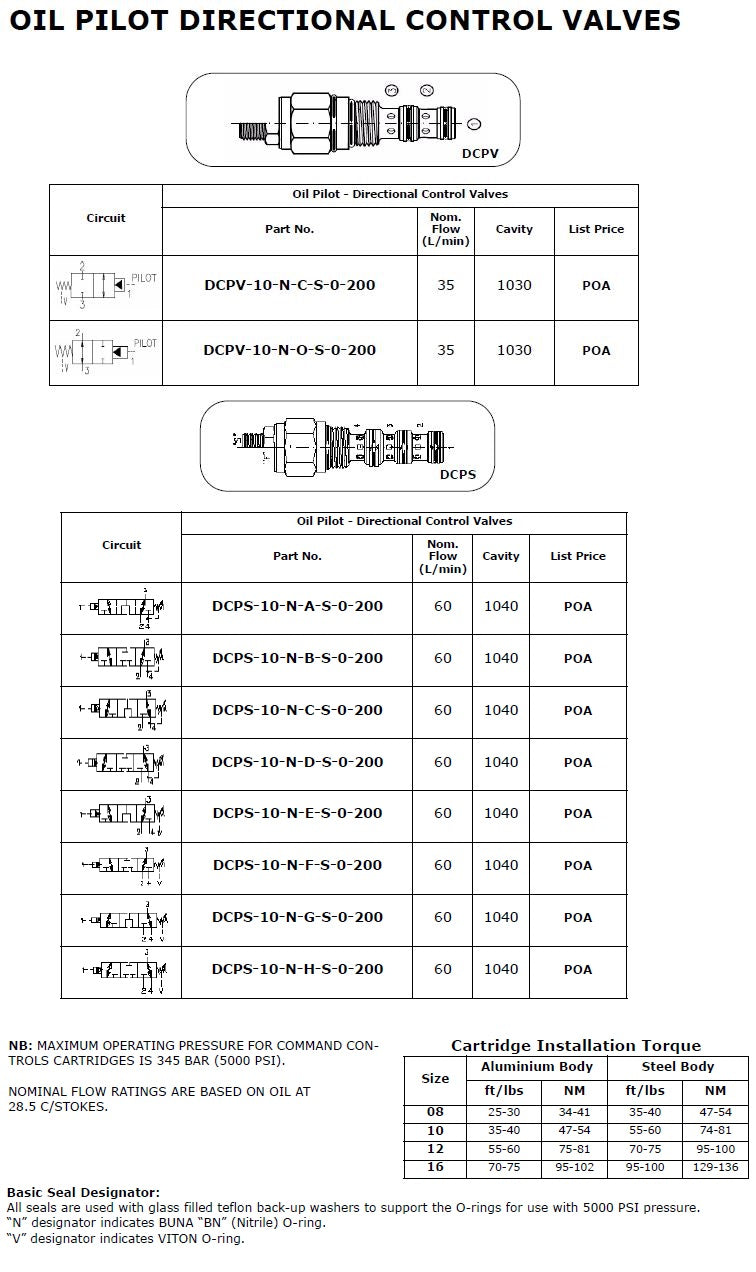

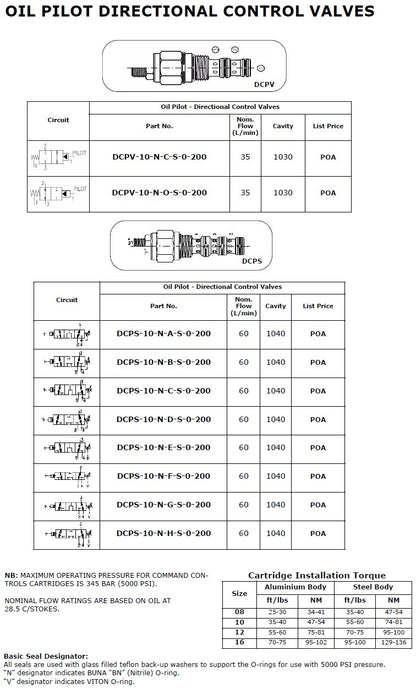

Oil Pilot Directional Control Valves

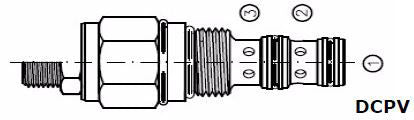

This unit is a screw in cartridge style, direct acting, oil piloted, hydraulic directional control valve in 2/2 and 3/2 configuration. Refer to the specification tab below for the configuration type to suit your application. Specifications: Operating Pressure: 5,000 PSI (350 Bar) Pilot Port Pressure: 5,000 PSI (350 Bar) DCPV Flow - 35 LPM DCPS Flow - 60 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
