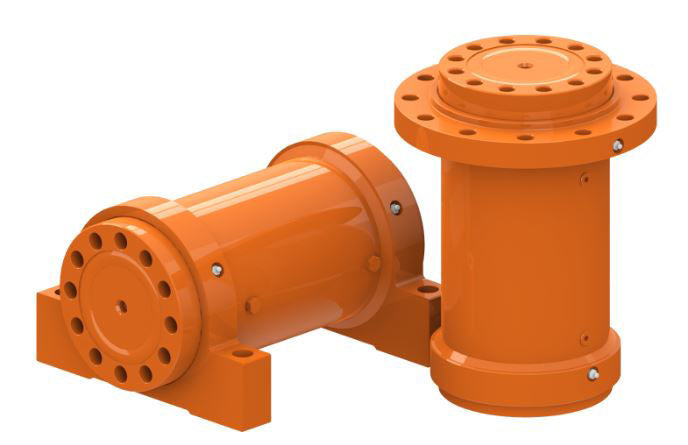

L30 Series - Foot Mount

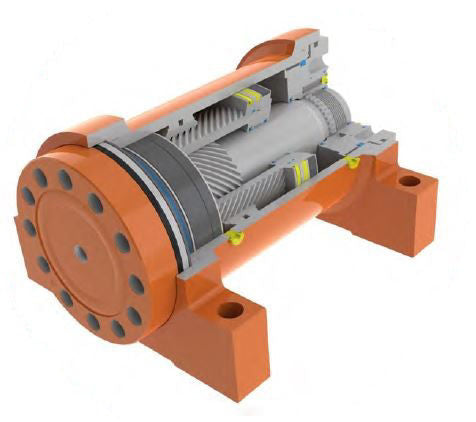

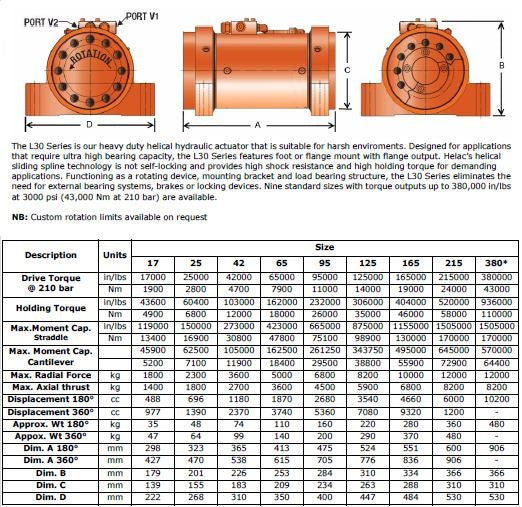

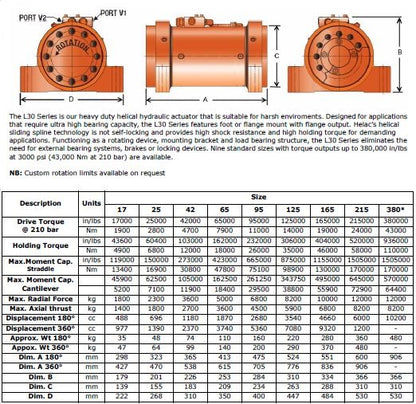

The L30 Series is our heavy duty helical hydraulic actuator that is suitable for harsh environments. Designed for applications that require ultra high bearing capacity, the L30 Series features foot or flange mount with flange output. Helac's helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L30 Series eliminates the need for external bearing systems, brakes or locking devices. Nine standard sizes with torque outputs up to 380,000 in/lbs at 3000 psi (43,000 Nm at 210 bar) are available. NB: Custom rotation limits available on request
