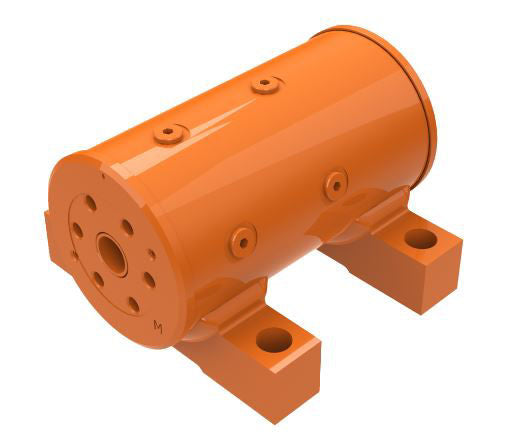

L20 Series

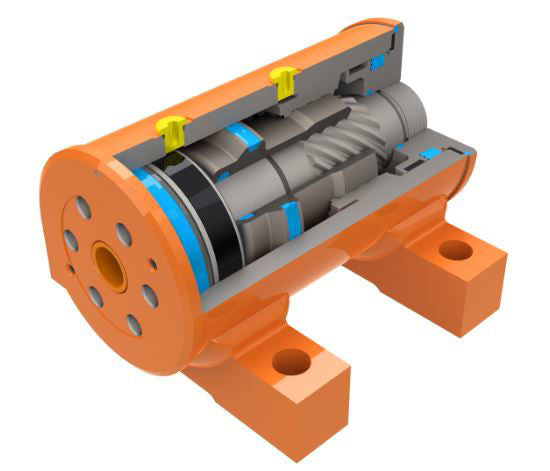

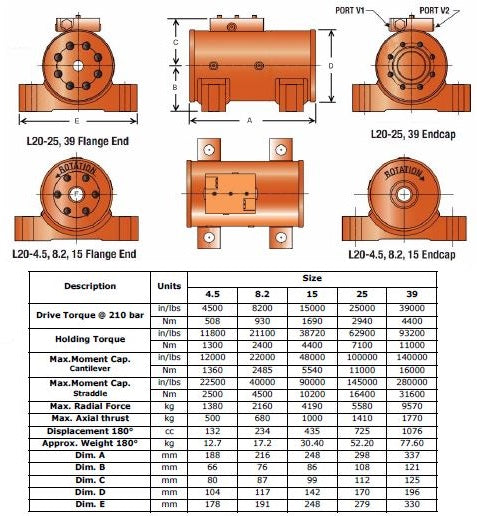

The L20 Series is a cost effective solution that can easily be designed into a wide range of applications. It features versatile mounting options and flange output. Helac's Helical sliding spline technology is not self-locking and provides high shock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L20 Series eliminates the need for external bearing systems, brakes or locking devices. Five standard sizes with torque outputs up to 39,000 in/lbs at 3000 psi (4400 Nm at 210 bar) are available. NB: Custom rotation limits available on request
