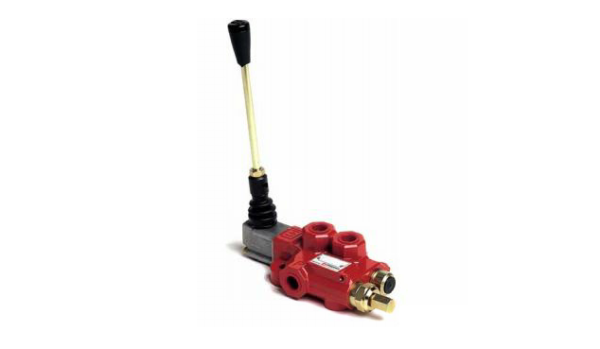

HDM140 Series Monoblock Valves

Series HDM directional control valves feature compact, cast monoblock bodies and have high operating pressure ratings. A notable feature is the very low level of internal spool leakage.

• Low weight, small dimensions
• Operating pressure up to 350 bar
• Excellent price/performance ratio
• Elimination of potential leakage between sections
• Easy maintenance

Manufactured By

051417006

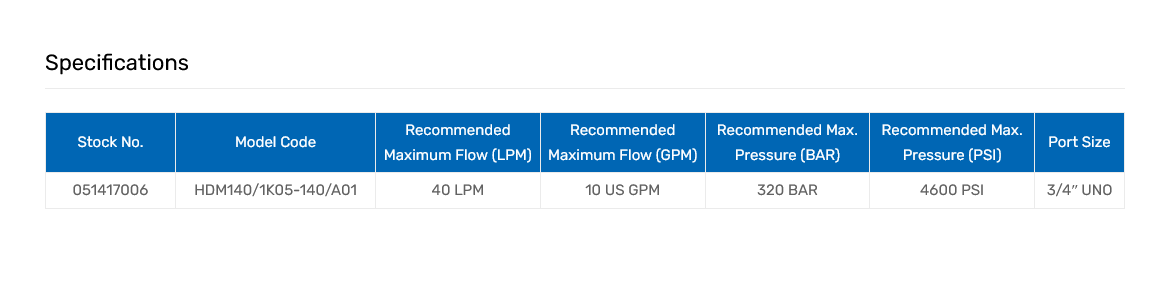

Model Code: HDM140/1K05-140/A01

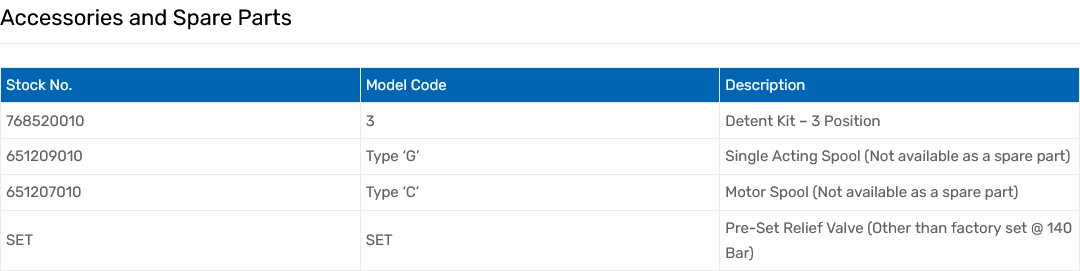

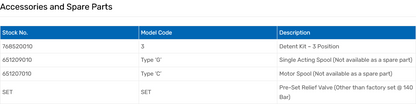

Accessories and Spare Parts

If you need any of these please contact us to add them to your order
