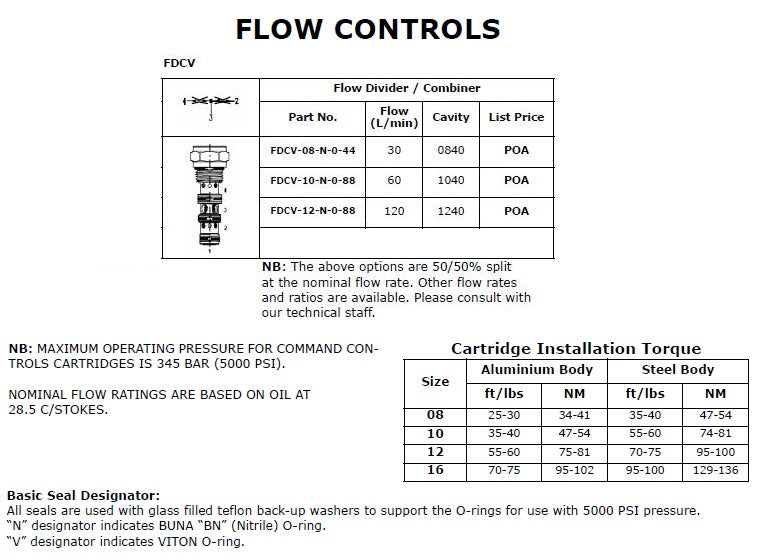

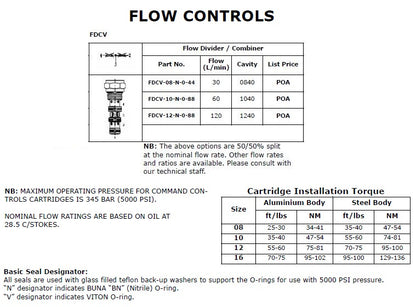

FDCV Series

This unit is a spool type, screw in cartridge style, flow divider / combiner valve. Operations: This valve divides flow from port 3 to port 2 and 4 and combines flow from port 2 and 4 to port 3 at the specified flow division regardless of load or system pressure. Should the circuit operation result in blockage of either port 2 or 4, the opposite port will continue to flow but at reduced flow rate to synchronize a cylinder. Specifications: Operating Pressure: 5,000 PSI (350 Bar) Flow: 30 LPM to 121 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
