DCV40 Series Monoblock Mobile Directional Valves

Click Here to Download PDF

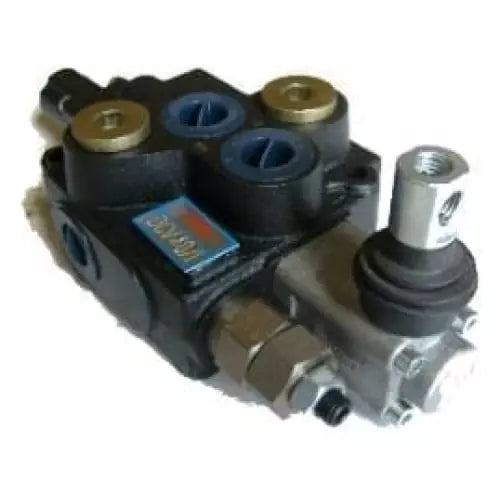

DCV40/1-E7(200)-S1C1A1-U1-G08

Old Part Number - DCV40/1-E7(140)-S1C1A1-U1-G08

DCV40/1 Manual Control Valve – Monoblock – Single Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar

DCV40/1-E7(200)-S4C1A1-U1-G08

Old Part Number -  DCV40/1-E7(140)-S4C1A1-U1-G08

DCV40/1 Manual Control Valve – Monoblock – Single Bank. A & B Open to T. Spring Centred. 1/2″ BSPP. 315Bar

DCV40/1-E7(200)-S4C1A2-U1-G08

Old Part Number -  DCV40/1-E7(140)-S4C1A2-U1-G08

DCV40/1 Manual Control Valve – Monoblock – Single Bank. A & B Open to T. 3 Pos Detent. 1/2″ BSPP. 315Bar

DCV40/1-E7(200)-S8C1A1-U1-G08

Old Part Number - DCV40/1-E7(140)-S8C1A1-U1-G08

DCV40/1 Manual Control Valve – Monoblock – Single Bank. Single Acting in B. Spring Centred. 1/2″ BSPP. 315Bar

DCV40/1-E7(200)-S9C1A1-U1-G08

Old Part Number - DCV40/1-E7(140)-S9C1A1-U1-G08

DCV40/1 Manual Control Valve – Monoblock – Single Bank. Single Acting in A. Spring Centred. 1/2″ BSPP. 315Bar

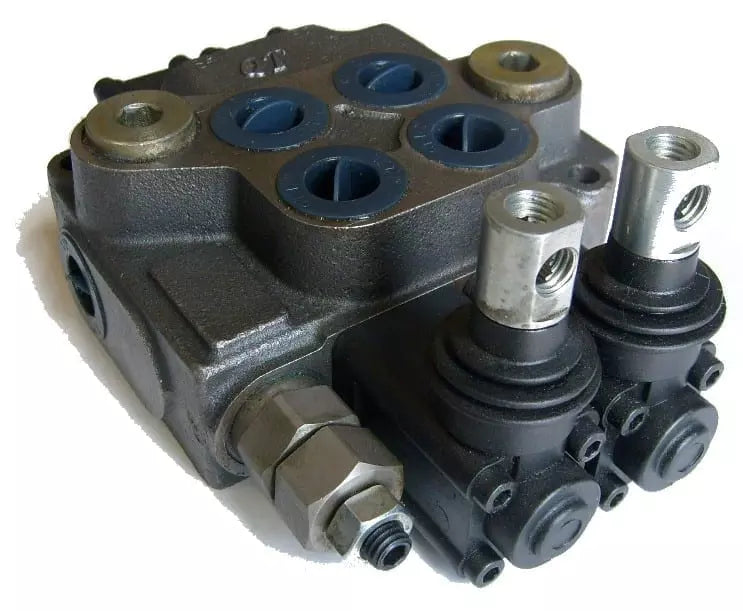

DCV40/2-E7(200)-S1C1A1-U1-G08

Old Part Number -  DCV40/2-E7(140)-S1C1A1-U1-G08

DCV40/2 Manual Control Valve – Monoblock – 2 Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar

DCV40/2-E7(200)-S4C1A1-U1-G08

Old Part Number -  DCV40/2-E7(140)-S4C1A1-U1-G08

DCV40/2 Manual Control Valve – Monoblock – 2 Bank. A & B Open to T. Spring Centred. 1/2″ BSPP. 315Bar

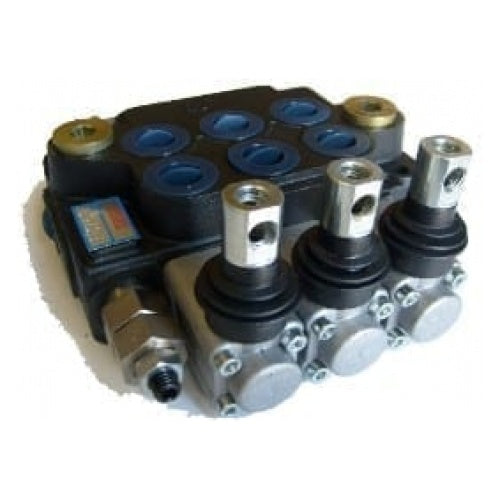

DCV40/3-E7(200)-S1C1A1-U1-G08

Old Part Number -  DCV40/3-E7(140)-S1C1A1-U1-G08

DCV40/3 Manual Control Valve – Monoblock – 3 Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar

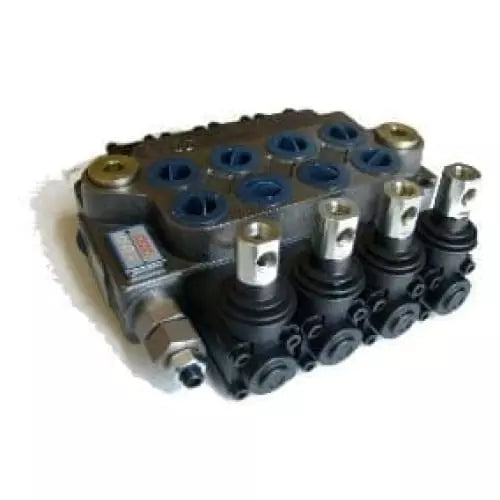

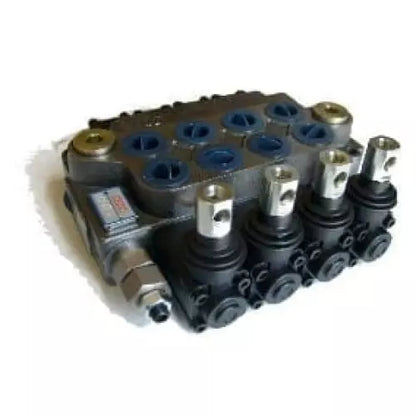

DCV40/4-E7(200)-S1C1A1-U1-G08

Old Part Number -  DCV40/4-E7(140)-S1C1A1-U1-G08

DCV40/4 Manual Control Valve – Monoblock – 4 Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar

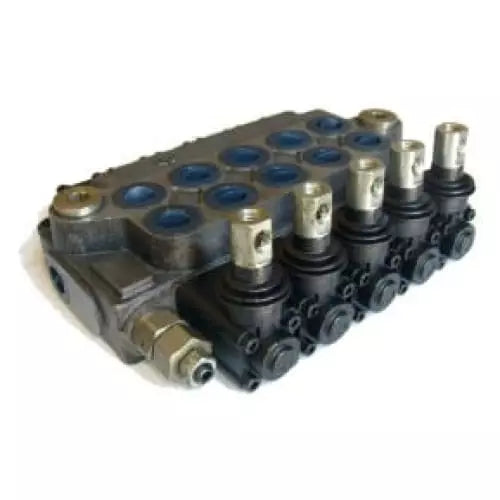

DCV40/5-E7(200)-S1C1A1-U1-G08

Old Part Number - DCV40/5-E7(140)-S1C1A1-U1-G08

DCV40/5 Manual Control Valve – Monoblock – 5 Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar

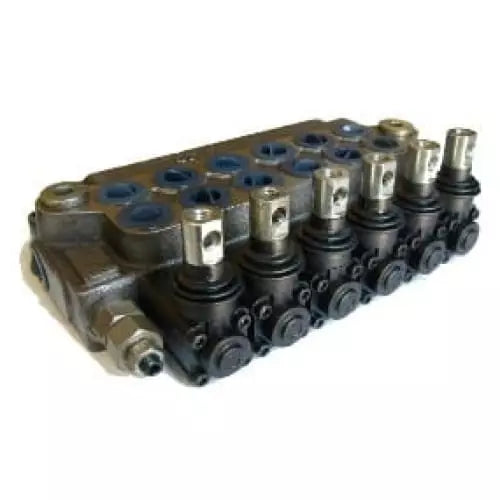

DCV40/6-E7(200)-S1C1A1-U1-G08

Old Part Number -  DCV40/6-E7(140)-S1C1A1-U1-G08

DCV40/6 Manual Control Valve – Monoblock – 6 Bank. Double Acting Spring Centred. 1/2″ BSPP. 315Bar
