BMP Series Gerotor Motor - SAE 2 Bolt Mount - 1" Keyed Shaft

The BMP Low Speed High Torque Gerotor Motors are available with displacements from 36 – 500cc/rev.

They are very compact & efficient in design with high pressure seals.

The BMP’s have a continuous speed range of 7 ~ 1500rpm and continuous torque up to 385Nm.

We offer various shaft and mounting options and an optional case drain.

The BMP range of motors come standard with needle bearings. These needle bearings allow a higher permissible radial load and reduce the risk of metal binding.

Common Applications

• Augers
• Harvesters
• Seeders
• Conveyors
• Forestry
• Industrial Sweepers
• Machine Tools
• Rail Equipment
• Concrete Equipment
• Lawn Mowers
• Marine
• Anchors
• Winches

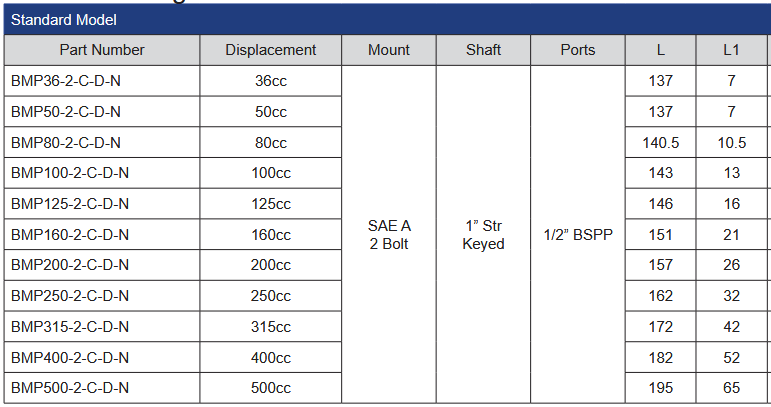

BMP36-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 36cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 1500rpm
• Maximum Continuous Torque – 55Nm
• Maximum Continuous Operating Pressure – 12.5Mpa
• Maximum Intermittent Operating Pressure – 16.5
• Maximum Continuous Flow – 55L/min
• Weight – 5.6 Kgs

BMP50-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 50cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 1150rpm
• Maximum Continuous Torque – 100Nm
• Maximum Continuous Operating Pressure – 14Mpa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60L/min
• Weight – 5.6Kgs

BMP80-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 80cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 770rpm
• Maximum Continuous Torque – 146Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 5.7Kgs

BMP100-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 100cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 615rpm
• Maximum Continuous Torque – 182Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 5.9Kgs

BMP125-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 125cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 490rpm
• Maximum Continuous Torque – 236Nm
• Maximum Continuous Operating Pressure – 14Mpa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 6Kgs

BMP160-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 160cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 383rpm
• Maximum Continuous Torque – 302Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 6.2Kgs

BMP200-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 200cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 310rpm
• Maximum Continuous Torque -360Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 6.4Kgs

BMP250-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 250cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 250rpm
• Maximum Continuous Torque – 380Nm
• Maximum Continuous Operational Pressure – 14MPa
• Maximum Intermittent Operational Pressure – 17.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 6.6Kgs

BMP315-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 315cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 192rpm
• Maximum Continuous Torque – 375Nm
• Maximum Continuous Operating Pressure – 12.5MPa
• Maximum Intermittent Operating Pressure – 14MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 6.9Kgs

BMP400-2-C-D-N

BMP Series Orbital Motor

• Gerotor Motor
• 400cc/rev
• SAE 2 Bolt Mount
• 1″ Keyed Shaft
• 1/2″ BSPP Ports
• Maximum Continuous Speed – 155rpm
• Maximum Continuous Torque – 360Nm
• Maximum Continuous Operating Pressure – 10MPa
• Maximum Intermittent Operating Pressure – 12.5MPa
• Maximum Continuous Flow – 60 L/min
• Weight – 7.4Kgs
