B Series Monoblock Valves

The CROSS series B directional control valves provide good metering characteristics and long dependable service life.

Optimum versatility is provided due to the many standard and optional features. Balanced spools are select-fit for minimum leakage and load holding checks prevent load drop when shifting.

Parallel flow path permits spools to be operated independently or simultaneously.

Manufactured By

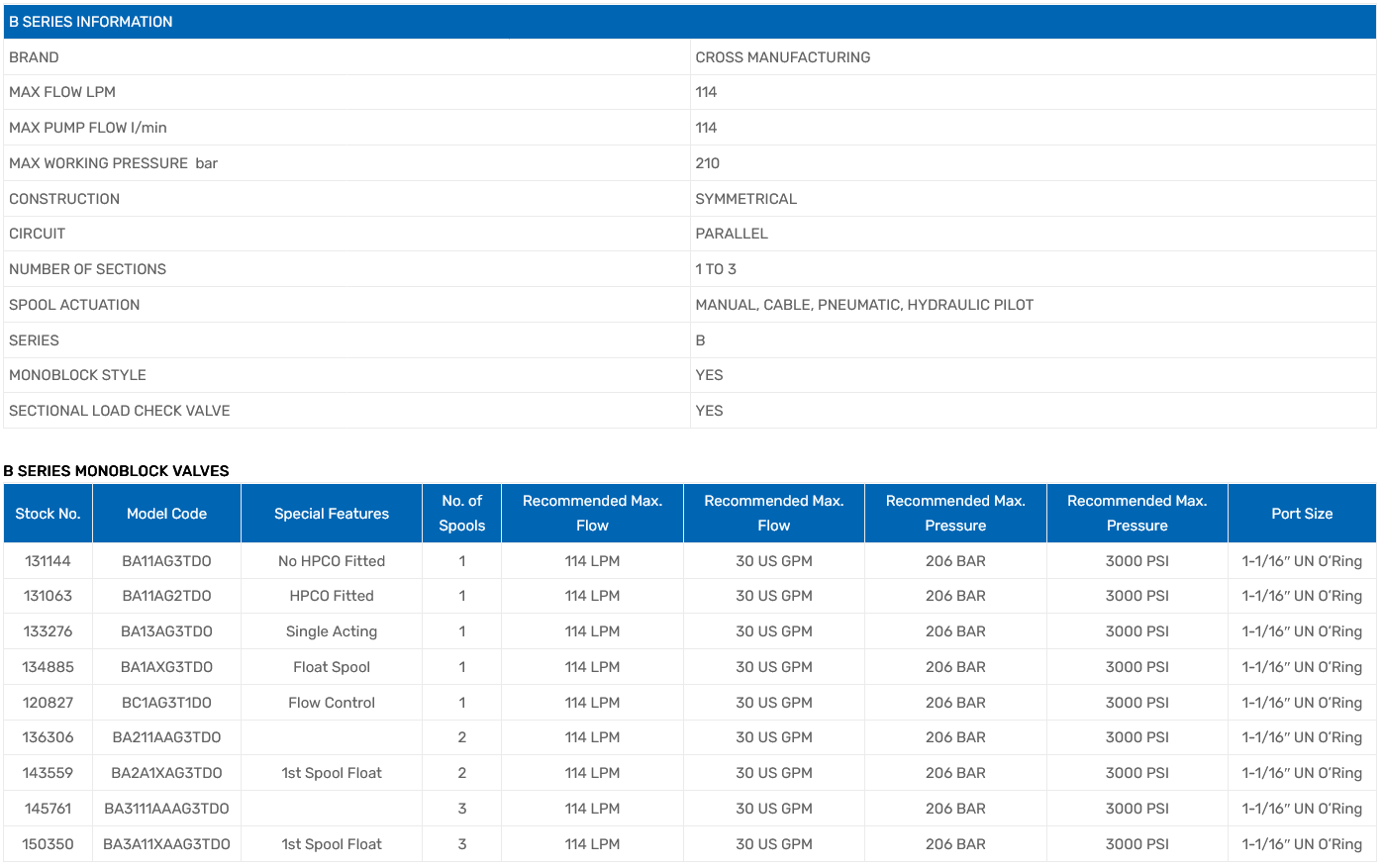

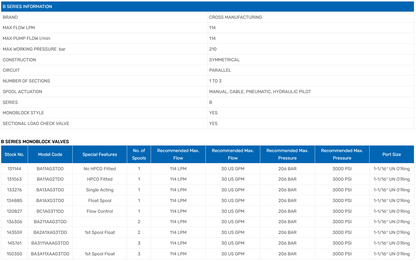

131144

Model Code: BA11AG3TDO

131022

Model Code: BA11AG2TDO

133276

Model Code: BA13AG3TDO

134885

Model Code: BA1AXG3TDO

120827

Model Code: BC1AG3T1DO

136313

Model Code: BA211AAG3TDO

143559

Model Code: BA2A1XAG3TDO

145761

Model Code: BA3111AAAG3TDO

150350

Model Code: BA3A11XAAG3TDO

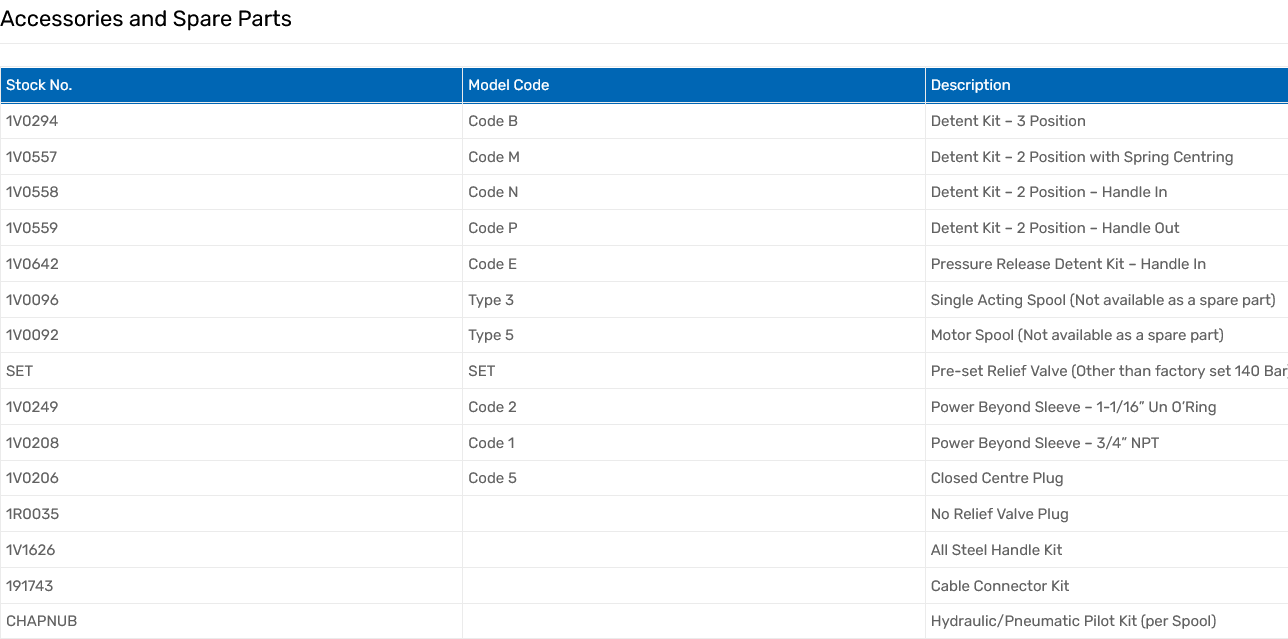

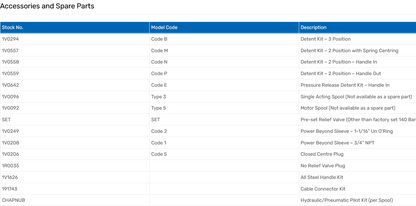

Accessories & Spares

If you need any of these please contact us to add them to your order
