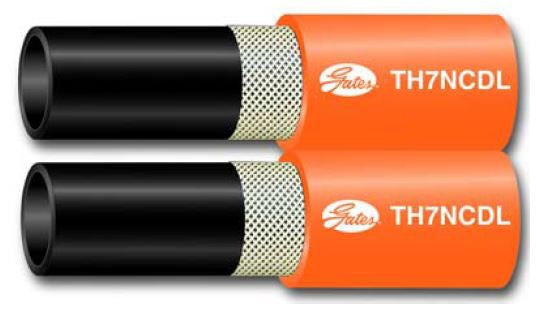

TH7NCDL Series Non-Conductive Dual Line Thermoplastic Hose

Recommended For: Petroleum, water base and synthetic hydraulic fluids. Applications include: power and telephone mobile equipment (cherry pickers), lubrication lines, blowout preventer control lines, hydraulic lifts and farm and construction machinery. Orange colour TH7NCDL meets SAE 100R7 non-conductivity requirements. TH7NCDL hose meets or exceed performance requirements of SAE 100R7 with significantly tighter bend radius. Tube: Polyester. Reinforcement: Braided synthetic fibre. Cover: Orange urethane that resists hydraulic fluids, high temperatures, aging and weathering. Orange TH7NCDL is non-perforated for applications requiring electrical non-conductivity. Meets SAE 100R7 Electrical Conductivity Test. Maximum leakage shall not exceed 50 microamperes when subjected to 75 kV/ft for five minutes. (Orange is industry accepted colour for non-conductive hose). Temperature Range: -65°F to 200°F (-54°C to +93°C) continuous service for petroleum and synthetic oils. Maximum of +158°F(+70°C) for water, water/oil emulsions and water glycol. Couplings: Super-Crimp and Gates Mega-Crimp series.

***Sold by the metre***
