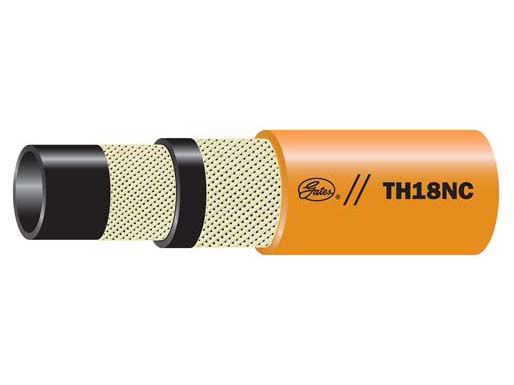

TH18NC Series Non-Conductive Thermoplastic Hose

Recommended For: Petroleum and syntheic hydraulic fluids. TH18NC non-conductive hose is suitable for use in high-voltage applications. Remains highly flexible in cold wether conditions. Standards: Meets SAE100R18 performance requirements of SAE 100R18 with a significantly tighter bend radius. Meets SAE 100R18 Electrical Conductivity Test. Tube: Polyester elastomer. Reinforcement: Synthetic fibre. Cover: Special orange urethane resists hydraulic fluids, high temperatures, aging and weathering. Orange TH18NC cover is non-perforated for applications requiring electrical non-conductivity. Temperature Range: -67°F to 212°F (-55°C to -100°C) continuous service for petroleum and synthetic oils. Maxinmum of +158°F (+70°C) for water, water/oil emulsions and water glycol.

***Sold by the metre***
