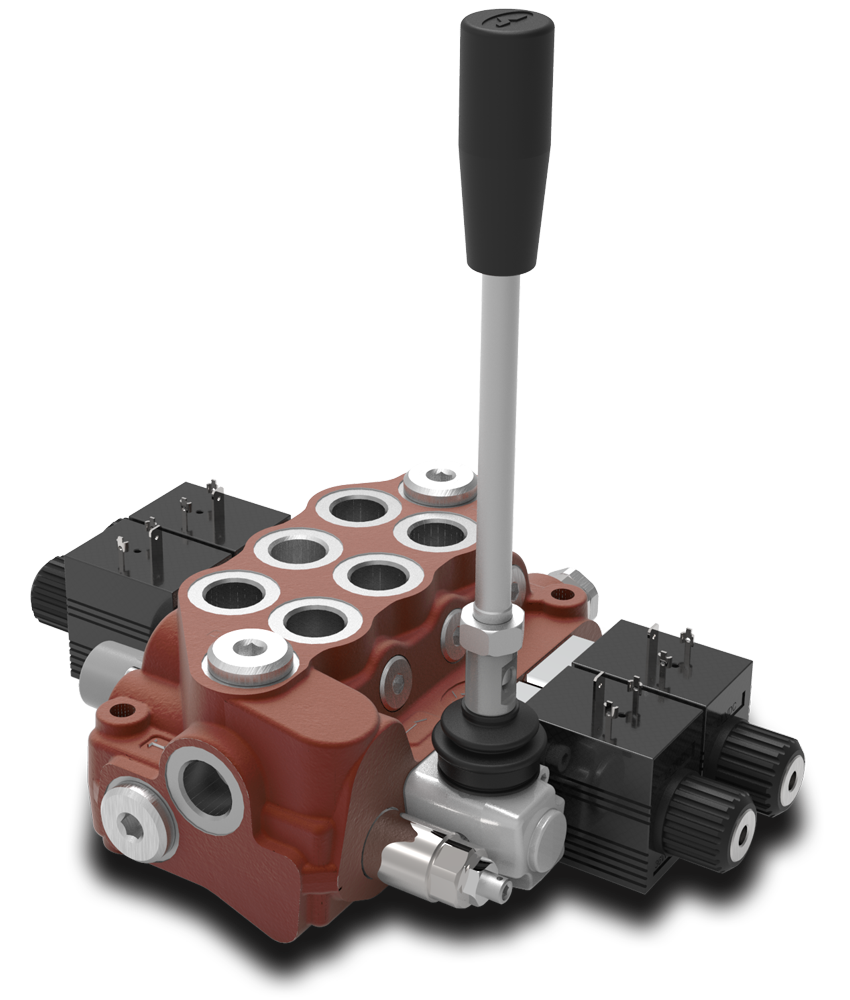

SMD105 Series

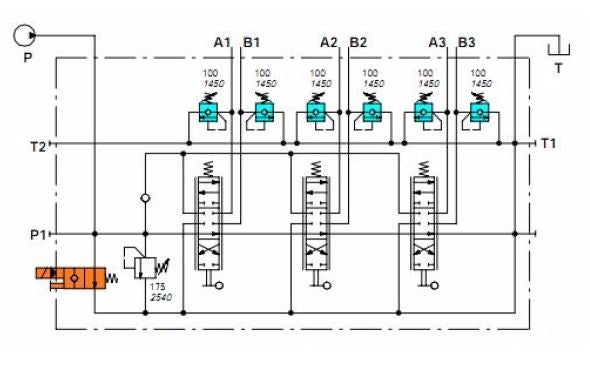

These directional control valves are the same as the SD5 series except they have the provision for the fitment of port reliefs & anti-cavitation checks. They have a relief valve and load hold check valve on the spool pressure line and the provision for a high pressure carry over port. An unloader solenoid is also available as an option. Also available in 5 or 6 sections on request.
