RC Series

RC Series - Flange Mounted Models

Aerial work platforms, industry and marine sector are typical applications for this
series. These actuators are suitable to support a bending moment. It is possible to
choose between different products with a torque range starting from 200 Nm to
11,000 Nm with the possibility of angle rotation from 180° to 360°.

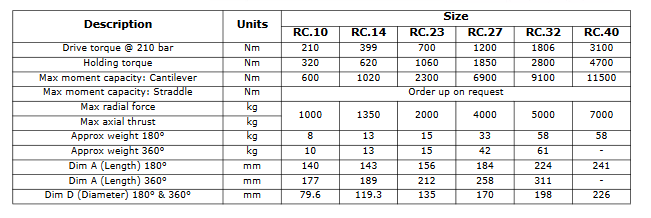

Note: all torque data refer to 210 bar working pressure
