QMV15 Series Monoblock Valves

QMV15 Series Monoblock Valves

SKU: Q15103A1M1

Price: $280.00
List Price:
Price: $280.00
5% off all orders over $1000 | Ends:
Style
View Cart

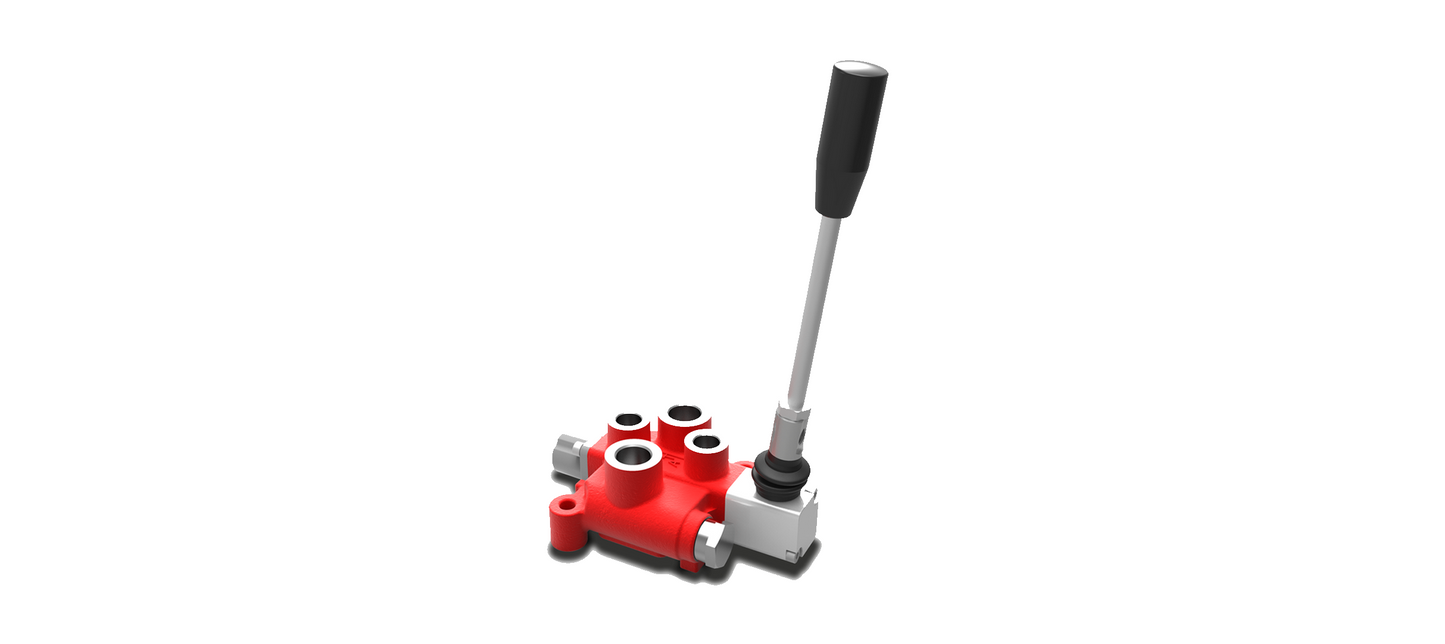

The QMV15 is a valve with particularly compact size construction, suitable for uses where reduced overall dimensions, strength and simplicity, are main prerogatives.

  • Max Flow (lpm): 20
  • Open Centre
  • Max Pump Flow (l/min): 20
  • Max Working Pressure (bar): 210
  • Construction: Symmetrical
  • Circuit: Parallel

Monoblock Directional Control Valve Manually Operated
Standard Double Acting - Spring Centered
(COMMON LOAD CHECK ON INLET)

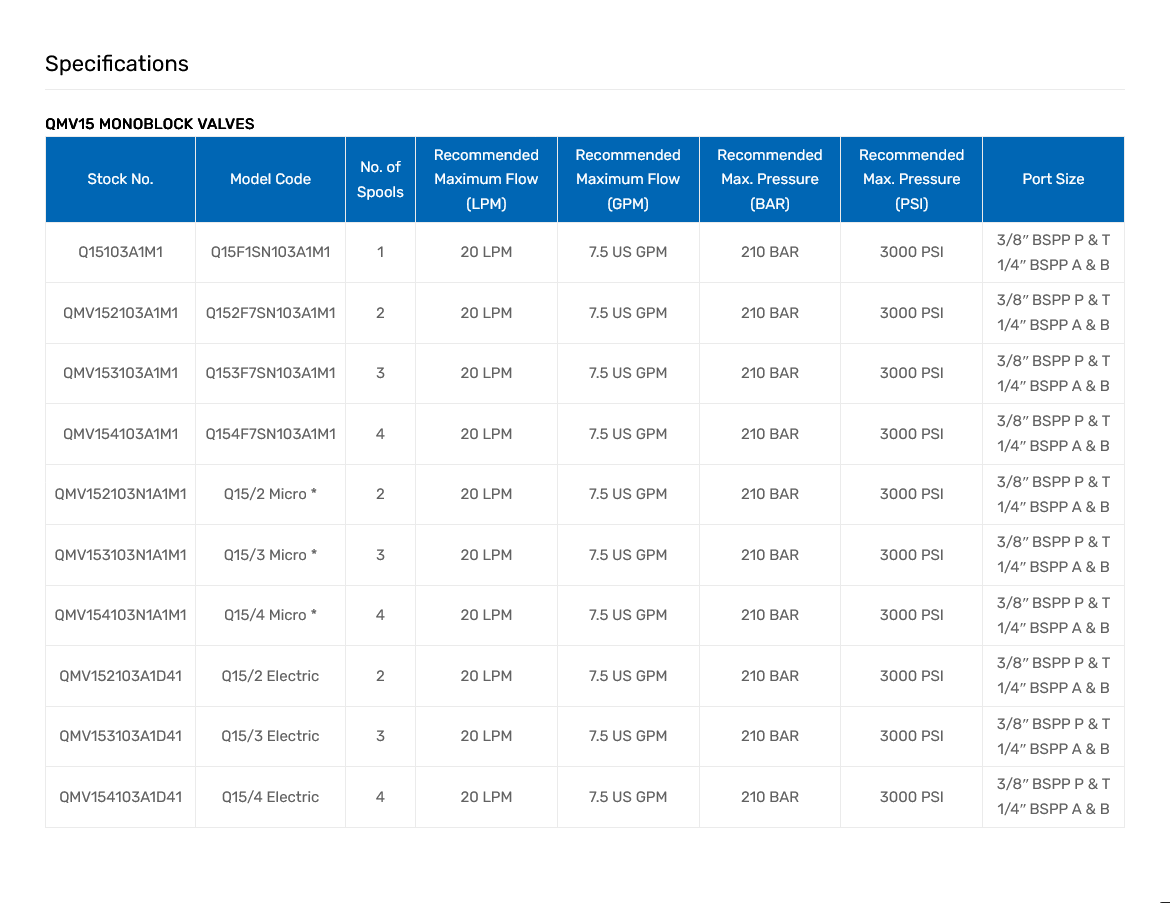

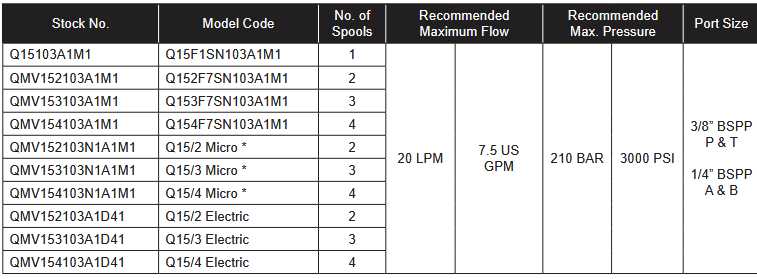

Q15103A1M1

Model Code: Q15F1SN103A1M1

QMV152103A1M1

Model Code: Q152F7SN103A1M1

QMV153103A1M1

Model Code: Q153F7SN103A1M1

QMV154103A1M1

Model Code: Q154F7SN103A1M1

QMV152103N1A1M1

Model Code: Q15/2 Micro *

QMV153103N1A1M1

Model Code: Q15/3 Micro *

QMV154103N1A1M1

Model Code: Q15/4 Micro *

QMV152103A1D41

Model Code: Q15/2 Electric

QMV153103A1D41

Model Code: Q15/3 Electric

QMV154103A1D41

Model Code: Q15/4 Electric

Accessories and Spare Parts

If you need any of these please contact us to add them to your order
