PWM Driver

PWM Driver

SKU: PWM-E-S-P

Price: $473.00
List Price:
Price: $473.00
5% off all orders over $1000 | Ends:
style
View Cart

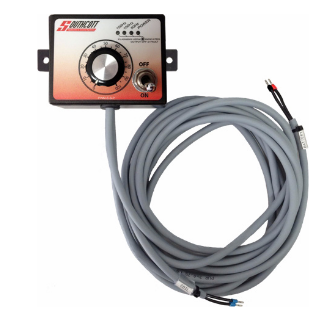

PWM DRIVER

PWM driver designed to control proportional hydraulic
valve coils for variable control applications

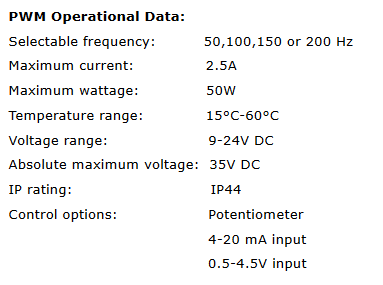

PWM Operational Data:

Selectable frequency: 50,100,150 or 200 Hz
Maximum current: 2.5A
Maximum wattage: 50W
Temperature range: 15°C-60°C
Voltage range: 9-24V DC
Absolute maximum voltage: 35V DC
IP rating: IP44
Control options: Potentiometer
4-20 mA input
0.5-4.5V input
