L10 Series

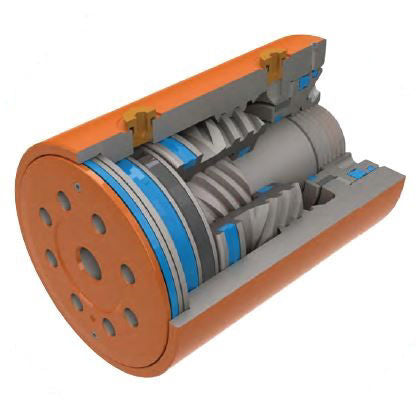

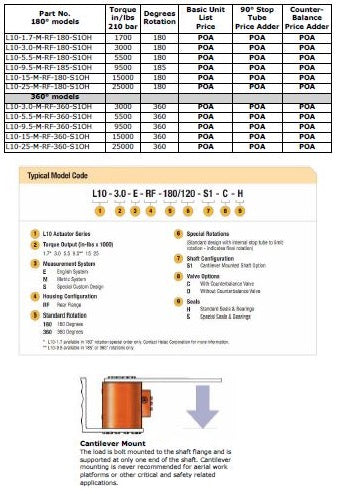

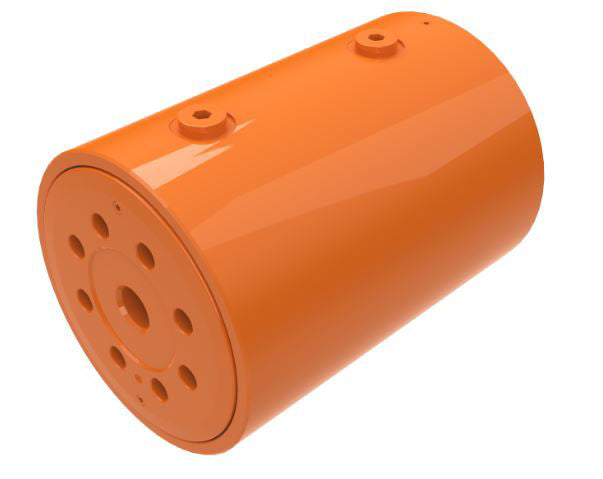

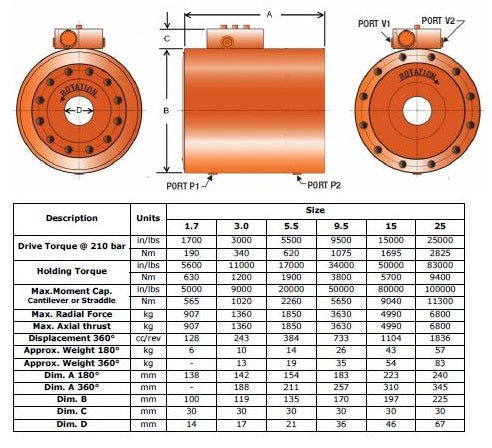

The L10 Series is Helac's smallest and most compact helical hydraulic actuator. Ideal for applications where space is of premium importance, the ultra-compact L10 series features extremely high thrust capacity in a sleek cylindrical design with flanged mounting and flanged output. Helac's helical hydraulic sliding spline technology is not self-locking and provides high stock resistance and high holding torque for demanding applications. Functioning as a rotating device, mounting bracket and load bearing structure, the L10 Series eliminates the need for external bearing systems, brakes or locking devices. Five standard sizes with torque outputs up to 25,000 in/lbs at 3000 psi (2825 Nm at 210 bar) are variable. NB: Custom rotation limits available on request
