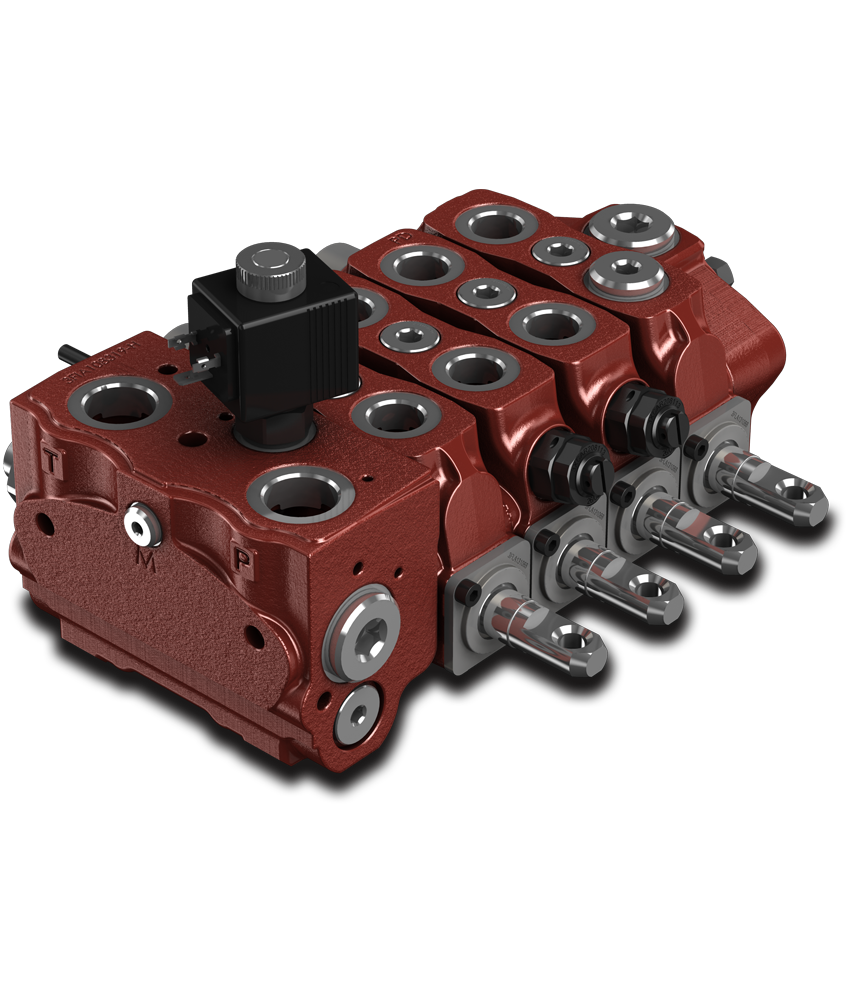

DLS8 Series

1 to 10 sections for systems with fixed displacement pumps (open centre) and variable displacement pumps with load sense and pressure compensation (closed centre). Load independent flow control. Fitted with main pressure relief and load check. Pressure gauge connectors on each section. A wide variety of port service valves. Ø18mm interchangeable spools. Available with manual, electro-hydraulic and remote cable control.
