4WE10 Series 2 Position Cetop 5 (NG10) Solenoid Valves w/ Single Coils

4WE10 Series 2 Position Cetop 5 (NG10) Solenoid Valves w/ Single Coils

Each Valve is Supplied with LED Din Plugs and Bolts

More Info

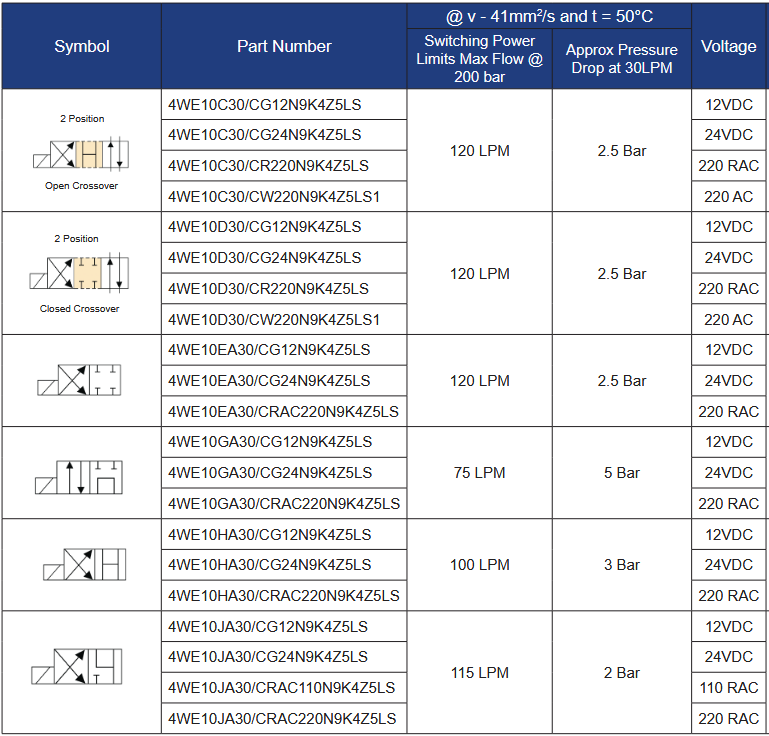

The switching power limits given are for featuring two flow directions. (e.g. from P to A and simultaneous return flow from B to
T). Due to the flow forces active within the valves the permitted powerlimit may be considerably less where there is only one
direction of flow. The power limit was determined using solenoids at their operating temperature, 10% under voltage and with
no preloading of the tank.
Note: Refer to technical datasheet for precise specifications. Copies can be supplied upon request
