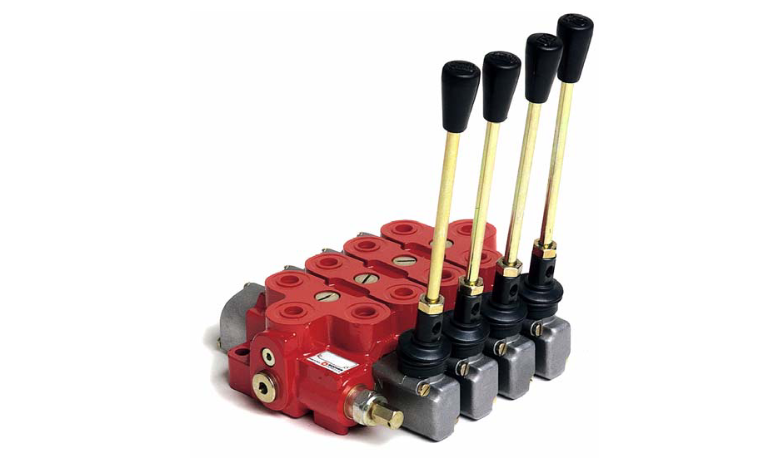

HDM18 Series Monoblock Valves

• Negative overlapping of the spool
• Open or closed center positions, 3 or 4 way operations, 3 or 4 positions (float position), full open center (motor spool) and other spool options
• Carry Over
• Series circuit
• Load sensing circuit closed center for variable displacement pump
• Complete lever assembly
• Wide range spool positioners

MANUFACTURED BY

071818001

Model Code: HDM18/1K06-150/A133

071828001

Model Code: HDM18/2K06-150/AA133

071838001

Model Code: HDM18/3K06-150/AAA133

071848001

Model Code: HDM18/4K06-150/AAAA133

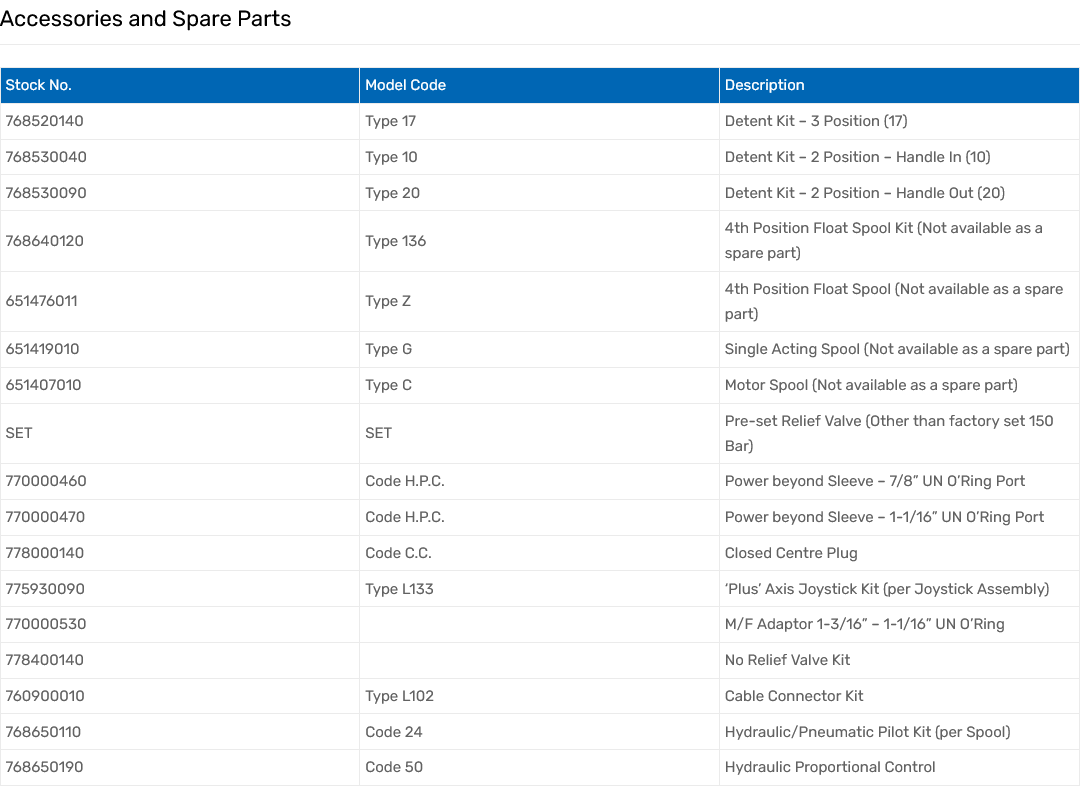

Accessories & Spares

If you need any of these please contact us to add them to your order
