PZ3BG Series SAE B Group 3 Gear Pumps - 7/8” 13T Splined Shaft

PZ3BG SAE B
BSPP Threaded Ports
7/8” 13T Splined Shaft

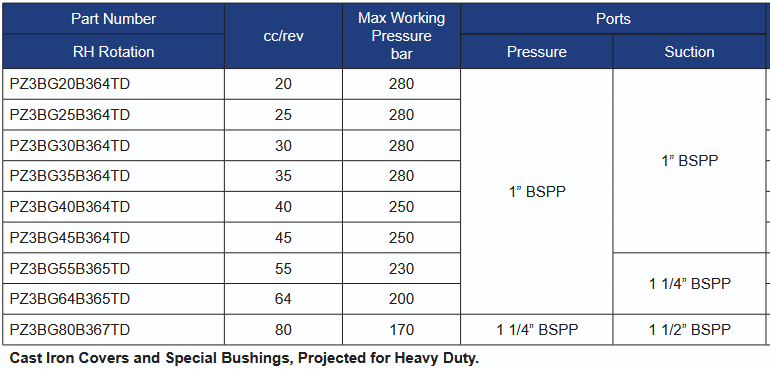

PZ3BG20B364TD

• 20cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG20B364TS

• 20cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG25B364TD

• 24.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG25B364TS

• 24.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG30B364TD

• 29.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG30B364TS

• 29.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

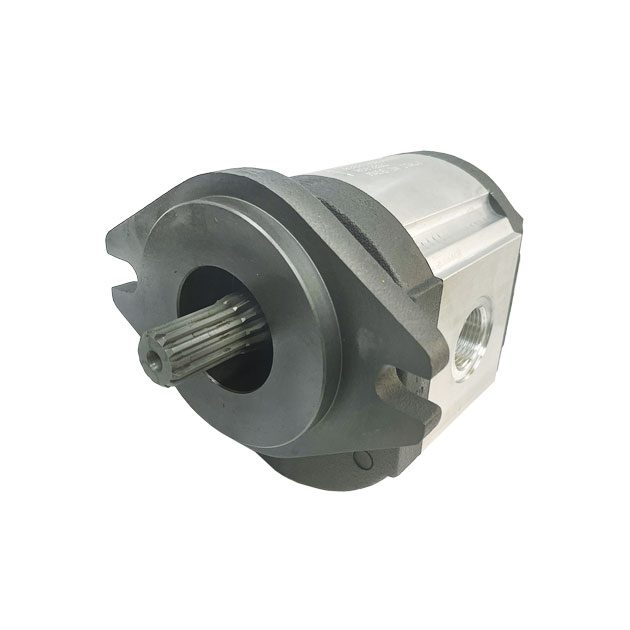

PZ3BG35B364TD

• 34.3cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG35B364TS

• 34.3cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG40B364TD

• 40.5cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG40B364TS

• 40.5cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG45B364TD

• 45.2cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG45B364TS

• 45.2cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG55B365TD

• 54.5cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 230 Bar Maximum Pressure
• 250 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG55B365TS

• 54.5cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 230 Bar Maximum Pressure
• 250 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG64B365TD

• 63.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 200 Bar Maximum Pressure
• 220 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

PZ3BG64B365TS

• 63.9cc/rev
• 7/8″ 13T Splined Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 200 Bar Maximum Pressure
• 220 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.
