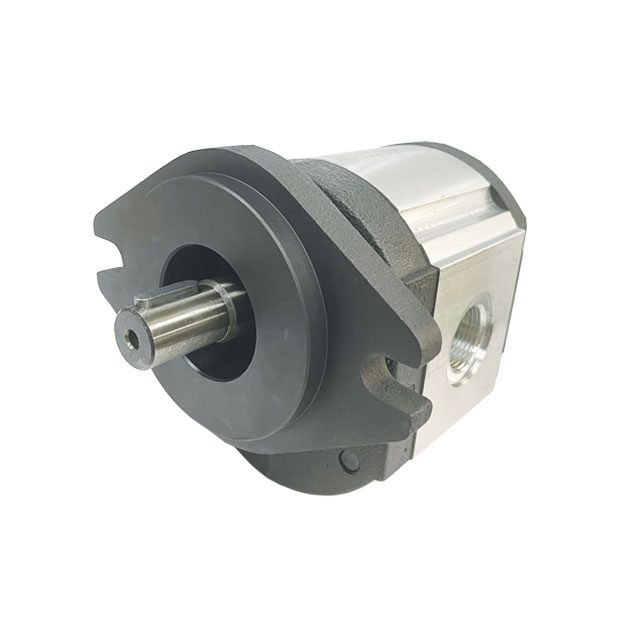

PZ3BG Series SAE B Group 3 Front Pump - 7/8” Straight Keyed Shaft

PZ3B SAE B Group 3 Gear Pump

• 24.9cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

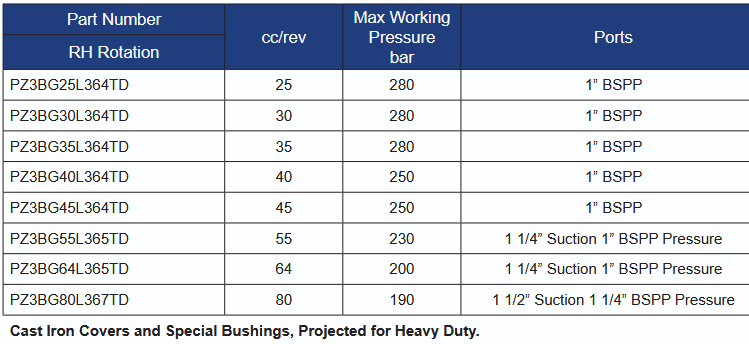

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG25L364TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 29.9cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG30L364TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 34.3cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 280 Bar Maximum Pressure
• 310 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG35L364TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 40.5cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG40L364TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 45.2cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1″ BSPP Threaded Ports
• 250 Bar Maximum Pressure
• 280 Bar Maximum Peak Pressure
• Right Hand Rotation

PZ3BG45L364TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 54.5cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 230 Bar Maximum Pressure
• 250 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG55L365TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 64cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1 1/4″ Suction & 1″ Pressure BSPP Threaded Ports
• 200 Bar Maximum Pressure
• 220 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ4BG64L365TD

Ronzio Gear Pumps

PZ3B SAE B Group 3 Gear Pump

• 78.7cc/rev
• 7/8″ Straight Keyed Shaft
• SAE B 2 Bolt Mount
• 1 1/2″ Suction & 1 1/4″ Pressure BSPP Threaded Ports
• 170 Bar Maximum Pressure
• 190 Bar Maximum Peak Pressure
• Right Hand Rotation

Heavy Duty Cast Iron Covers.

See the datasheet below for further specifications on the Group 3 Gear Pumps.

PZ3BG80L365TD

Ronzio Gear Pumps
