PZ2BG Series German Style 9T Splined Shaft Gear Pumps

PZ2BG Series German Style 9T Splined Shaft Gear Pumps

SKU: PZ2BG04B136D

Price: $580.00
List Price:
Price: $580.00
5% off all orders over $1000 | Ends:
Style
Rotation
View Cart

PZ2BG
German Style
80mm Spigot
Splined 9T DIN

Please Allow 1-3 days Lead Time for LH Rotation Models

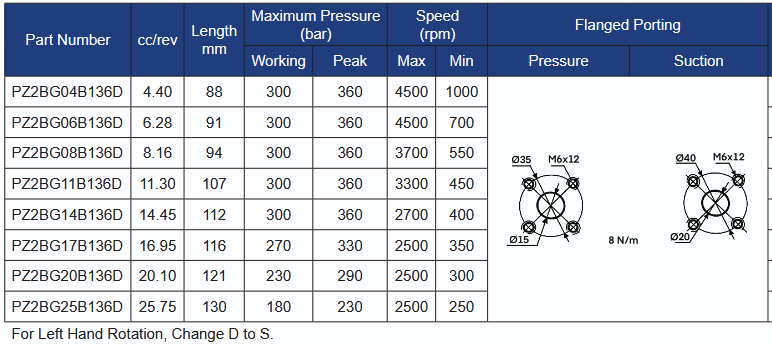

PZ2BG04B136D
  • 4.40cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG04B136S
  • 4.40cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG06B136D
  • 6.28cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG06B136S
  • 6.28cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG08B136D
  • 8.16cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG08B136S
  • 8.16cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG11B136D
  • 11.30cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG11B136S
  • 11.30cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 360 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation

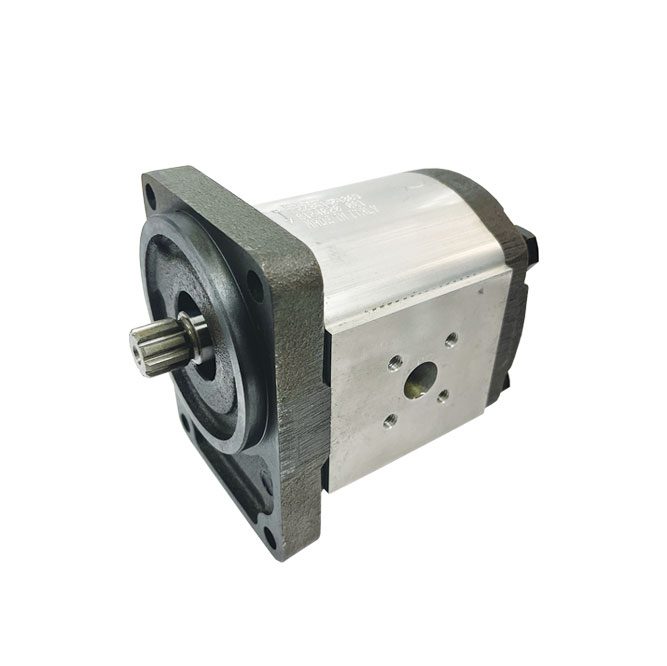

PZ2BG14B136D
  • 14.45cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 330 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG14B136S
  • 14.45cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 300 Bar Maximum Pressure
  • 330 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG17B136D
  • 16.95cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 250 Bar Maximum Pressure
  • 310 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG17B136S
  • 16.95cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 250 Bar Maximum Pressure
  • 310 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG20B136D
  • 20.1cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 210 Bar Maximum Pressure
  • 270 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG20B136S
  • 20.1cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 210 Bar Maximum Pressure
  • 270 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
PZ2BG25B136D
  • 25.75cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 160 Bar Maximum Pressure
  • 210 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Right Hand Rotation
PZ2BG25B136S
  • 25.75cc/rev
  • 9T Splined DIN Shaft
  • Square Flange Ports
  • 160 Bar Maximum Pressure
  • 210 Bar Maximum Peak Pressure
  • 110Nm Maximum Torque
  • Left Hand Rotation
