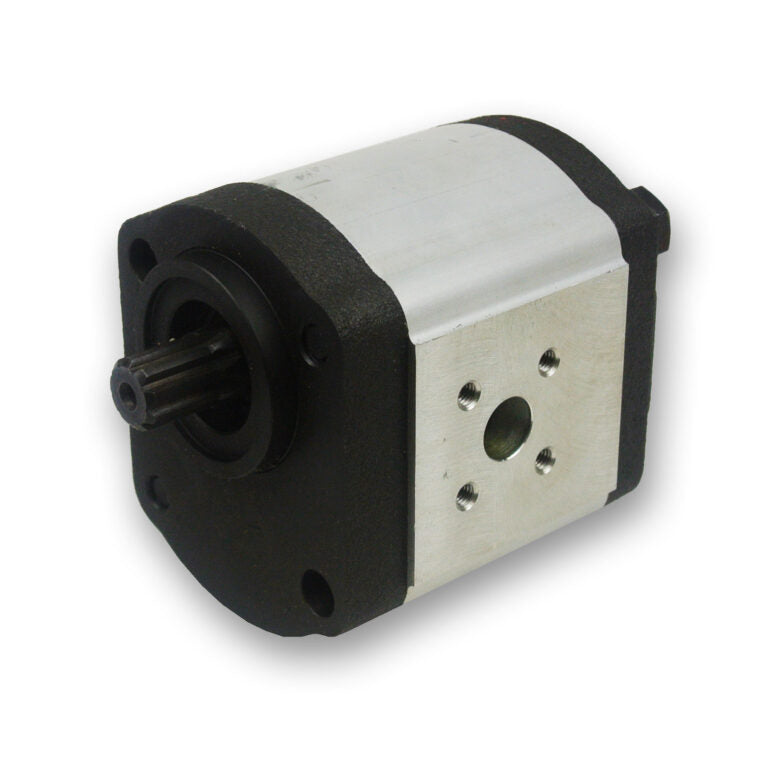

20A Series Group 2 Pump (German Standard) 2-Bolt KHD 16.5mm 9T Splined Shaft

Group 2 gear pumps, manufactured in Europe by Caproni.

German standard 2-bolt mount with flanged ports.

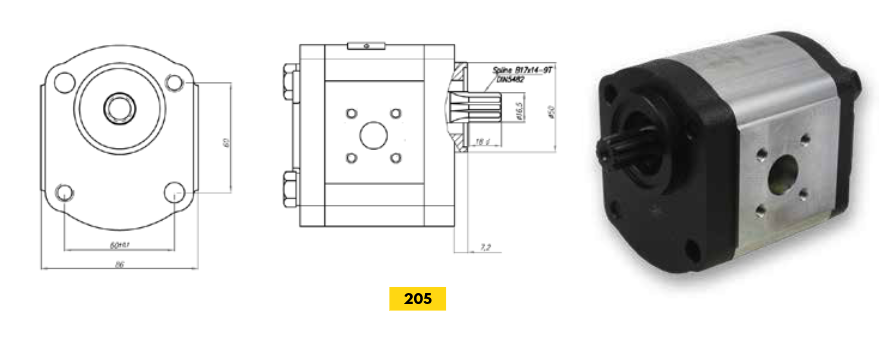

X205 Series with 2-bolt KHD mount and 16.5mm 9 tooth splined shaft.

X104 Series with 2-bolt SAE-A mount and 5/8″ 9 tooth splined shaft

Available as standard rotation CW, or CCW.

Accessories also available:
GR205-SK seal kit (or SKV, viton)
GR205-SS shaft seal (or SSV viton)
G205 port adaptor – alloy elbow 4-bolt, mount PCD 30mm, female 1/2” BSPP
G206 port adaptor – alloy elbow 4-bolt, mount PCD 40mm, female 3/4” BSPP
