BMRS Series Geroler Motor - SAE A 2 Bolt Mount - 1" Keyed Shaft

The BMRS Low Speed High Torque Geroler Motors are available with displacements from 36 – 400cc/rev.

They are very compact and efficient in design with high pressure seals.

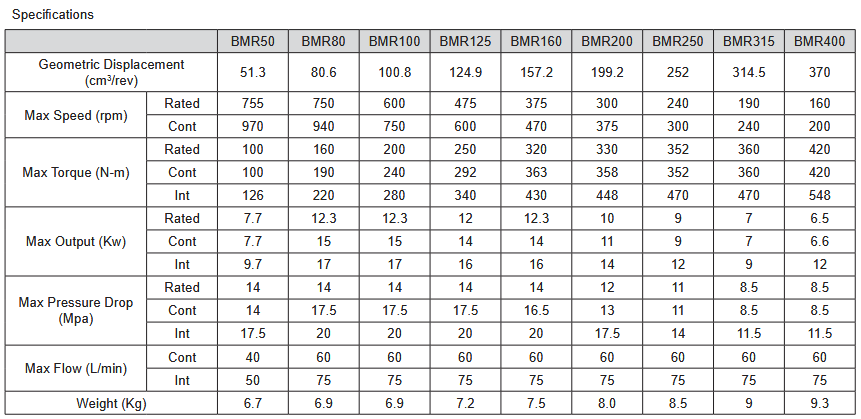

The BMR’s have a continuous speed range of 11 ~ 1085rpm and continuous torque up to 390Nm, depending on displacement.

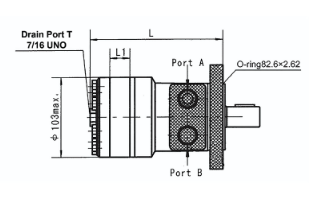

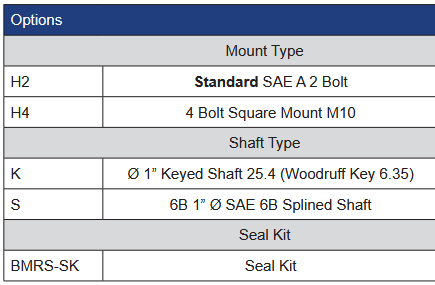

We offer various mounting and shaft options, ½” BSPP Ports, and an optional case drain.

The BMRS range of motors come standard with needle bearings. These needle bearings allow a higher permissible radial load and reduce the risk of metal binding.

Common Applications

• Augers
• Harvesters
• Seeders
• Conveyors
• Forestry
• Industrial Sweepers
• Machine Tools
• Rail Equipment
• Concrete Equipment
• Lawn Mowers
• Marine
• Anchors
• Winches

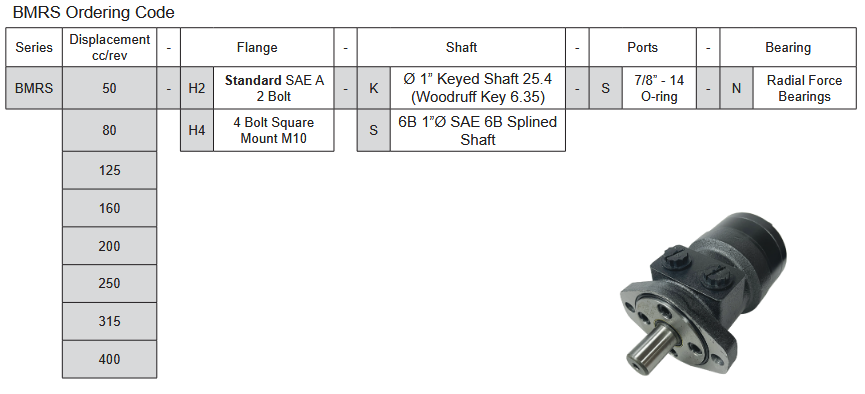

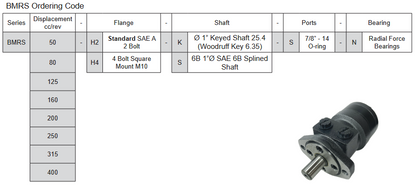

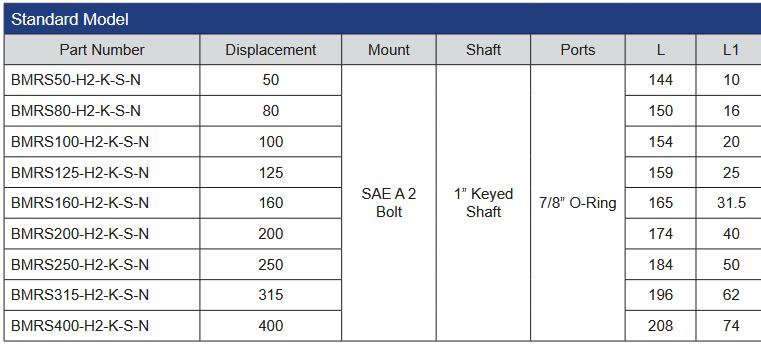

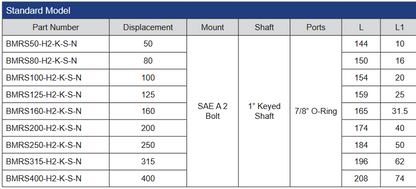

BMRS50-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 50cc/rev

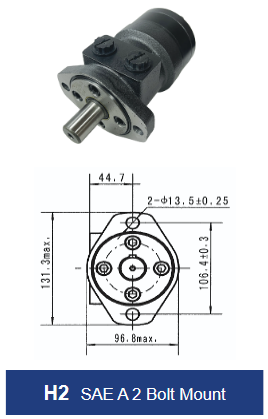

• SAE A 2 Bolt Mount

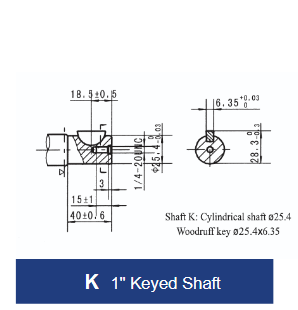

• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 960rpm
• Maximum Continuous Torque – 100Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60L/min
• Weight – 6.7Kgs

BMRS80-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 80cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 750rpm
• Maximum Continuous Torque – 195Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight –  6.7Kgs

BMRS100-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 100cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 600rpm
• Maximum Continuous Torque – 240Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight –  7Kgs

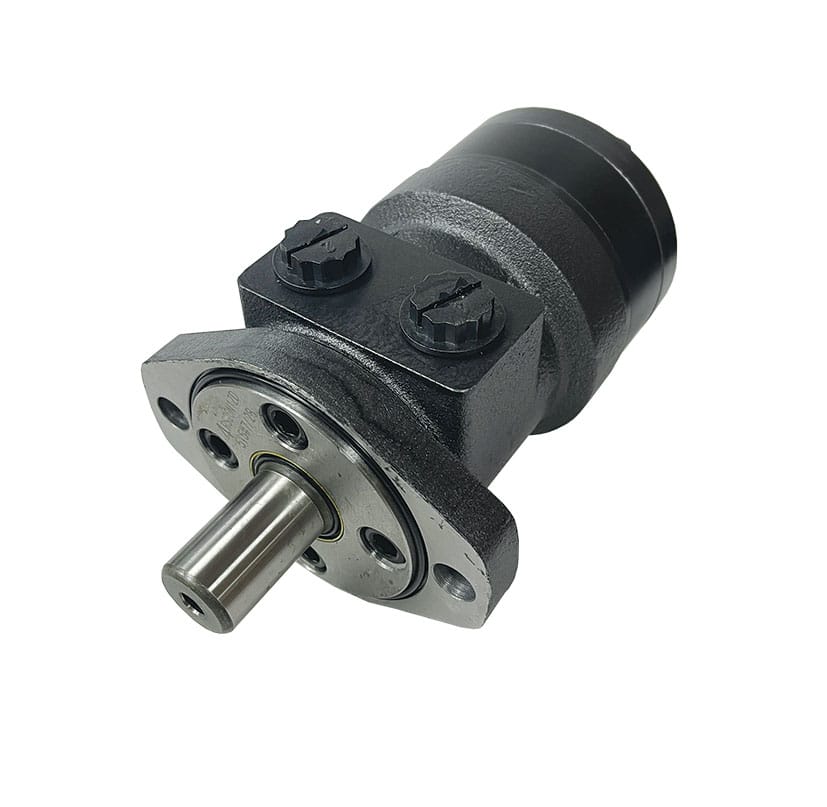

BMRS125-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 125cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 475rpm
• Maximum Continuous Torque – 300Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight – 7.3Kgs

BMRS160-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 160cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 378rpm
• Maximum Continuous Torque – 360Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight – 7.6Kgs

BMRS200-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 200cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 310rpm
• Maximum Continuous Torque – 360Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight – 8.0Kgs

BMRS250-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 250cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 240rpm
• Maximum Continuous Torque – 390Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 20MPa
• Maximum Continuous Flow – 60L/min
• Weight – 8.5Kgs

BMRS315-H2-K-S-N

BMRS Series Orbital Motor

•  Geroler Motor
• 315cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 190rpm
• Maximum Continuous Torque – 390Nm
• Maximum Continuous Operating Pressure – 16MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 60L/min
• Weight –  9.0Kgs

BMRS400-H2-K-S-N

BMRS Series Orbital Motor

• Geroler Motor
• 400cc/rev
• SAE A 2 Bolt Mount
• 1” Keyed Shaft
• 7/8” UNO Ports
• Maximum Continuous Speed – 155rpm
• Maximum Continuous Torque – 365Nm
• Maximum Continuous Operating Pressure – 12.5MPa
• Maximum Intermittent Operating Pressure – 14MPa
• Maximum Continuous Flow – 60L/min
• Weight –  9.5Kgs
