BMER Series Geroler Motors - 4 Bolt Wheel Mount - 1 1/4″ Tapered Shaft

The BMER-2 Series Geroler Motors are available with displacements from 125 – 750cc/rev.

They are very compact and efficient in design.

The output shaft needle bearings permit high axial and radial forces for a smooth operation during low pressure start up and high pressure operation.

The BMER-2’s are available with either a Wheel Drive Mount or a Magneto Mount to suit numerous applications.

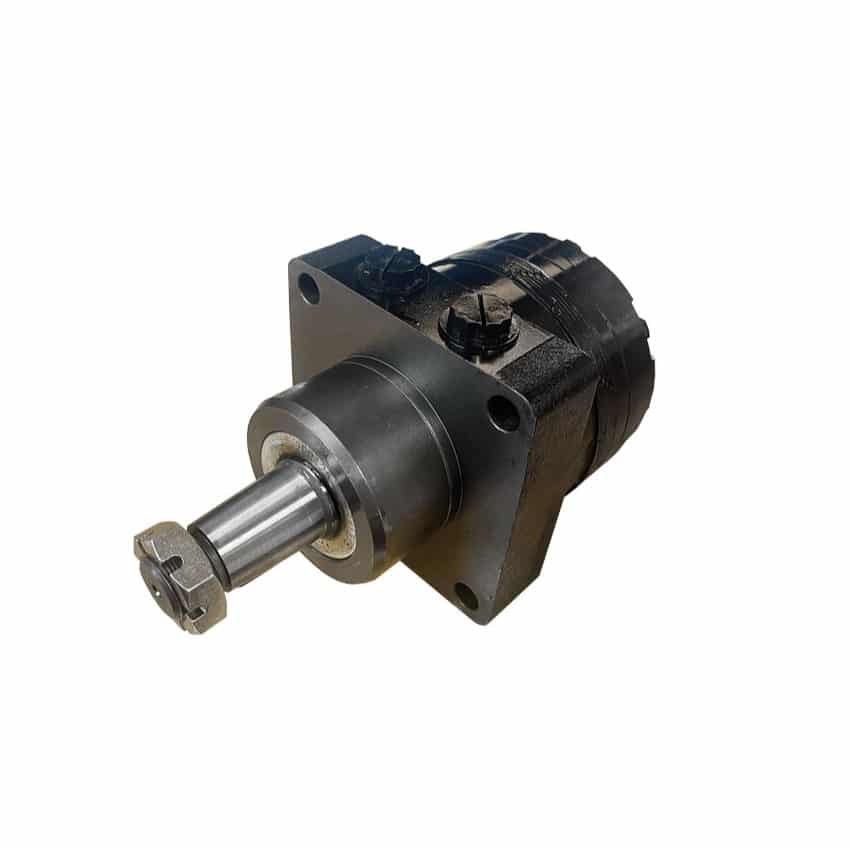

BMER-2-125-WS-T4

BMER-2 Series Orbital Motor

• 125cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″-14 UNOring Ports
• Maximum Continuous Speed – 360rpm
• Maximum Continuous Torque – 325Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 45LPM

BMER-2-160-WS-T4

BMER-2 Series Orbital Motor

• 160cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″-14 UNOring Ports
• Maximum Continuous Speed – 375rpm
• Maximum Continuous Torque – 450Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 60LPM

BMER-2-200-WS-T4

BMER-2 Series Orbital Motor

• 200cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″-14UNOring Ports
• Maximum Continuous Speed – 330rpm
• Maximum Continuous Torque – 530Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 70LPM

BMER-2-230-WS-T4

BMER-2 Series Orbital Motor

• 230cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″-14 UNOring Ports
• Maximum Continuous Speed – 290rpm
• Maximum Continuous Torque – 625Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 70LPM

BMER-2-250-WS-T4

BMER-2 Series Orbital Motor

• 250cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″-14UNOring Ports
• Maximum Continuous Speed – 290rpm
• Maximum Continuous Torque – 700Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 75LPM

BMER-2-300-WS-T4

BMER-2 Series Orbital Motor

• 300cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14 UNOring Ports
• Maximum Continuous Speed – 250rpm
• Maximum Continuous Torque – 810Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 80LPM

BMER-2-350-WS-T4

BMER-2 Series Orbital Motor

• 350cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14 UNOring Ports
• Maximum Continuous Speed – 220rpm
• Maximum Continuous Torque – 905Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 80LPM

BMER-2-375-WS-T4

BMER-2 Series Orbital Motor

• 375cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14 UNOring Ports
• Maximum Continuous Speed – 200rpm
• Maximum Continuous Torque – 990Nm
• Maximum Continuous Operating Pressure – 20.5MPa
• Maximum Intermittent Operating Pressure – 24MPa
• Maximum Continuous Flow – 75LPM

BMER-2-475-WS-T4

BMER-2 Series Orbital Motor

• 475cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14UNOring Ports
• Maximum Continuous Speed – 160rpm
• Maximum Continuous Torque – 1085Nm
• Maximum Continuous Operating Pressure – 17.5MPa
• Maximum Intermittent Operating Pressure – 20.5MPa
• Maximum Continuous Flow – 75LPM

BMER-2-540-WS-T4

BMER-2 Series Orbital Motor

• 540cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14UNOring Ports
• Maximum Continuous Speed – 140rpm
• Maximum Continuous Torque – 980Nm
• Maximum Continuous Operating Pressure – 14MPa
• Maximum Intermittent Operating Pressure – 17.5MPa
• Maximum Continuous Flow – 75LPM

BMER-2-750-WS-T4

BMER-2 Series Orbital Motor

• 750cc/rev
• 4 Bolt Wheel Mount
• 1 1/4″ Tapered Shaft
• 82.55mm Spigot
• 7/8″ – 14UNOring Ports
• Maximum Continuous Speed – 100rpm
• Maximum Continuous Torque – 1050Nm
• Maximum Continuous Operating Pressure – 12MPa
• Maximum Intermittent Operating Pressure – 14MPa
• Maximum Continuous Flow – 75LPM
