SDSV Series

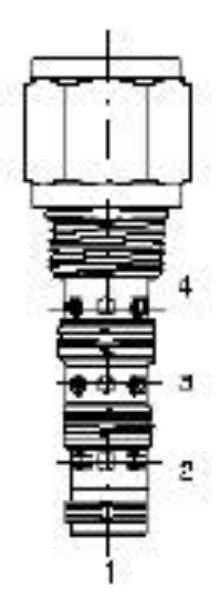

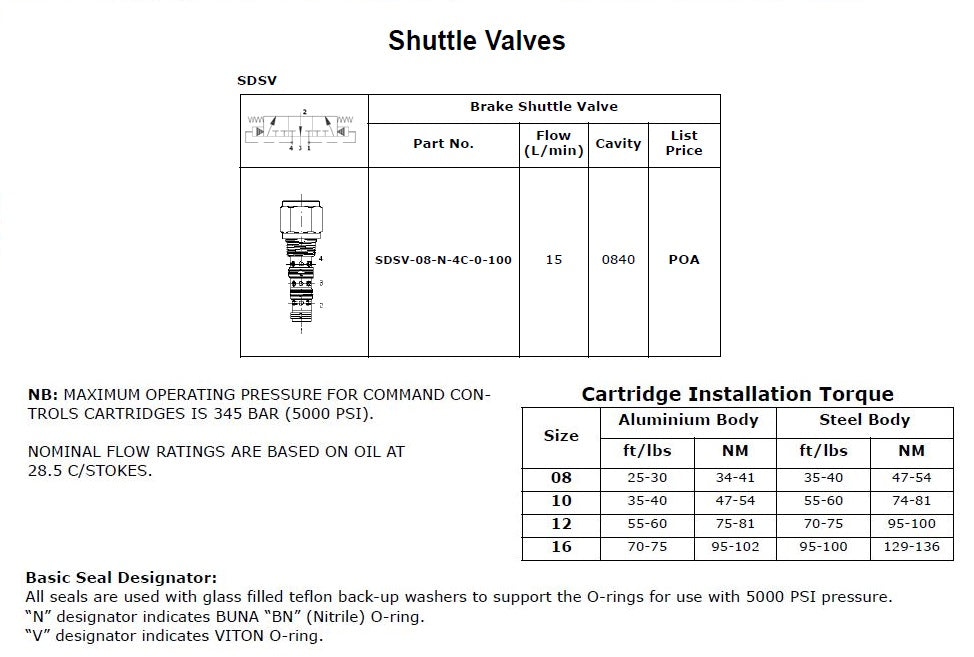

This unit is a screw in, catridge type, 4 ported spool type, 3 positon, spring centred, hydraulic brake release shuttle valve. Operations: This valve senses the higher of the two input pressures port 1 or port 4 and routes it to port 2, when pressure on port 1 or port 4 is equal the valve will center and route port 2 to port 3 (tank). Specifications: Operating Pressure: 5,000 PSI (350 Bar) Flow : 19 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
