PODS Series

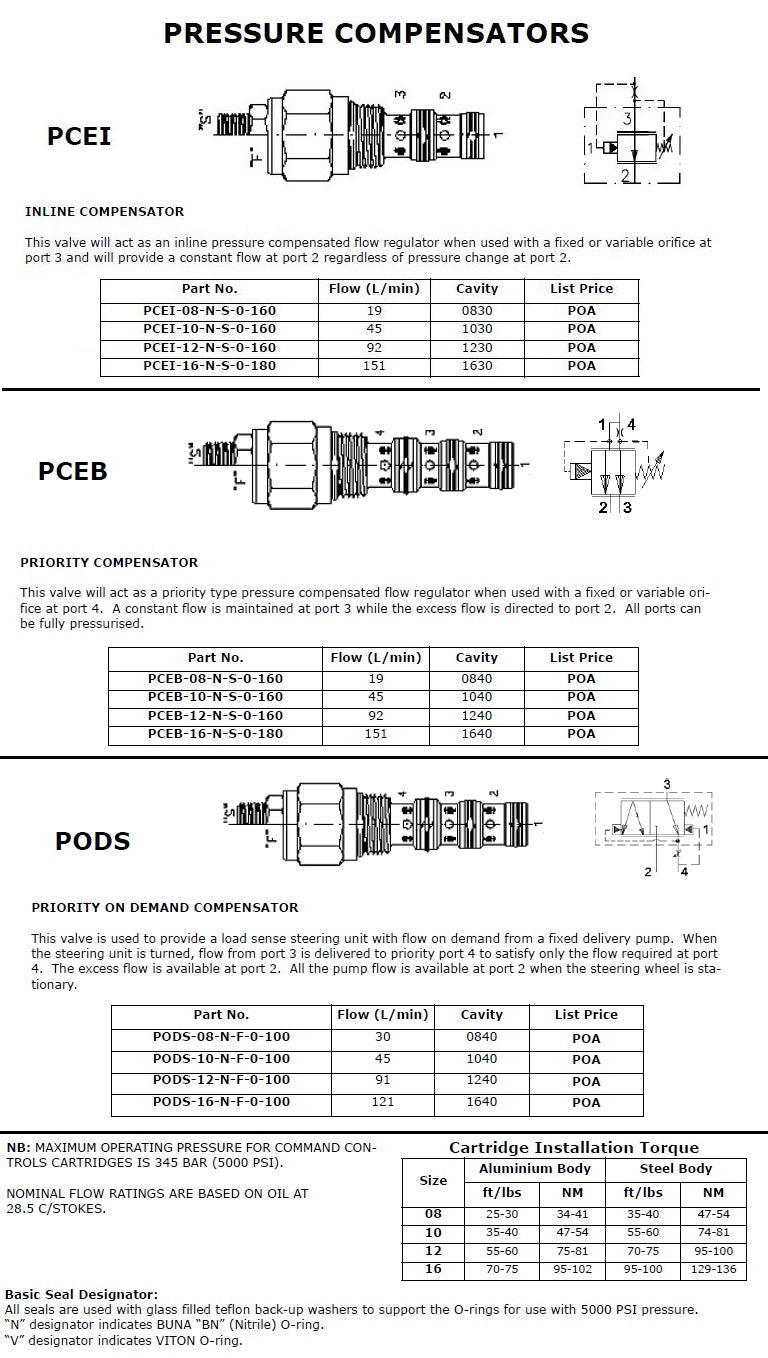

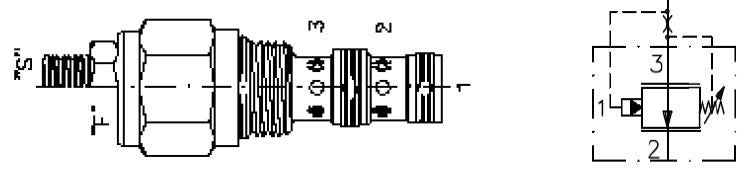

This unit is a direct acting, screw in cartridge style, spool type, pressure compensating flow element. PCEI - Is a spool type, 2-port inline restrictive flow compensator PCEB - Is a spool type, 3-port by-pass flow compensator PODS - Is a spool type, 3-port priority on demand compensator for load sensing systems Spool 'F' - Is a pilot to open function. Specifications: Operating Pressure: 5,000 PSI (350 Bar) PCEI & PCEB Flow - 19 LPM to 151 LPM PODS Flow - 30 LPM to 121 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
