Bucher Hydraulics

PIFC Series

PIFC Series

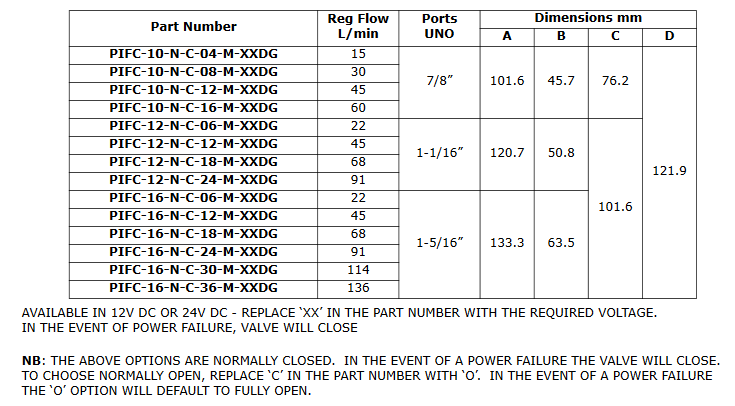

SKU: PIFC-10-N-C-04-M-12DG

Price: $1,779.00
List Price:
Price: $1,779.00
5% off all orders over $1000 | Ends:
style
View Cart

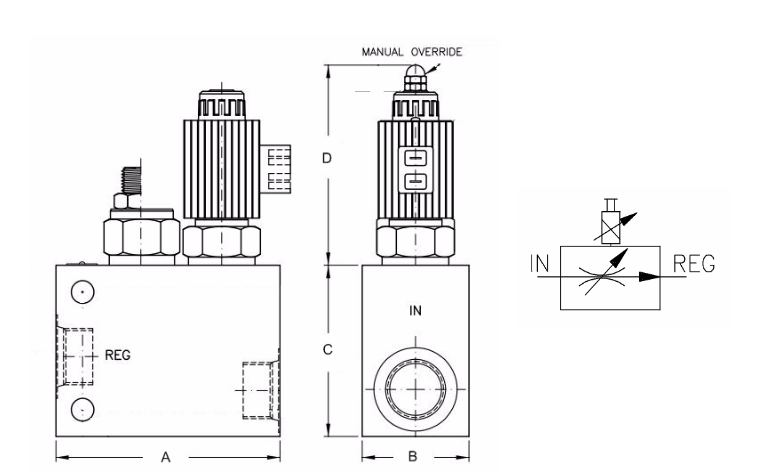

PROPORTIONAL FLOW CONTROL
2 Port Pressure Compensated

This unit is an electro-proportional, 2 port pressure compensated flow control valve. When the coil is energised the armature moves the metering orifice against a precision bias spring varying the flow. A pressure compensator modulates the flow to ensure constant flow at the REG port regardless of the operating pressure.
