LCEF Series

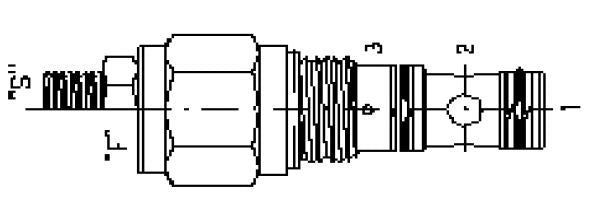

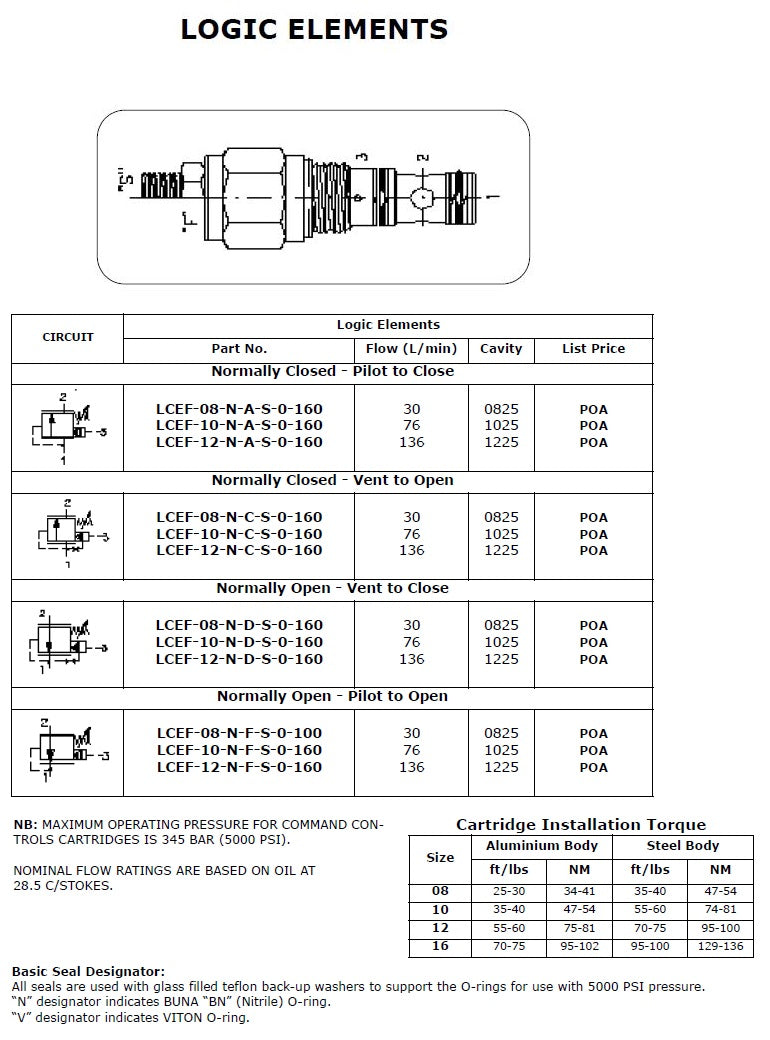

This unit is a direct acting, screw in cartridge style, spool type, hydraulic directional logic element, with multi-functional potential when used with other directional, pressure or flow control devices. These are available in 4 spool types to achieve different circuit functionality. Spool 'A' - Is a pilot to close function. Spool 'C' - Is a vent to open function. Spool 'D' - Is a vent to close function. Spool 'F' - Is a pilot to open function. Specifications: Operating Pressure: 5,000 PSI (350 Bar) Flow - 30 LPM to 136 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
