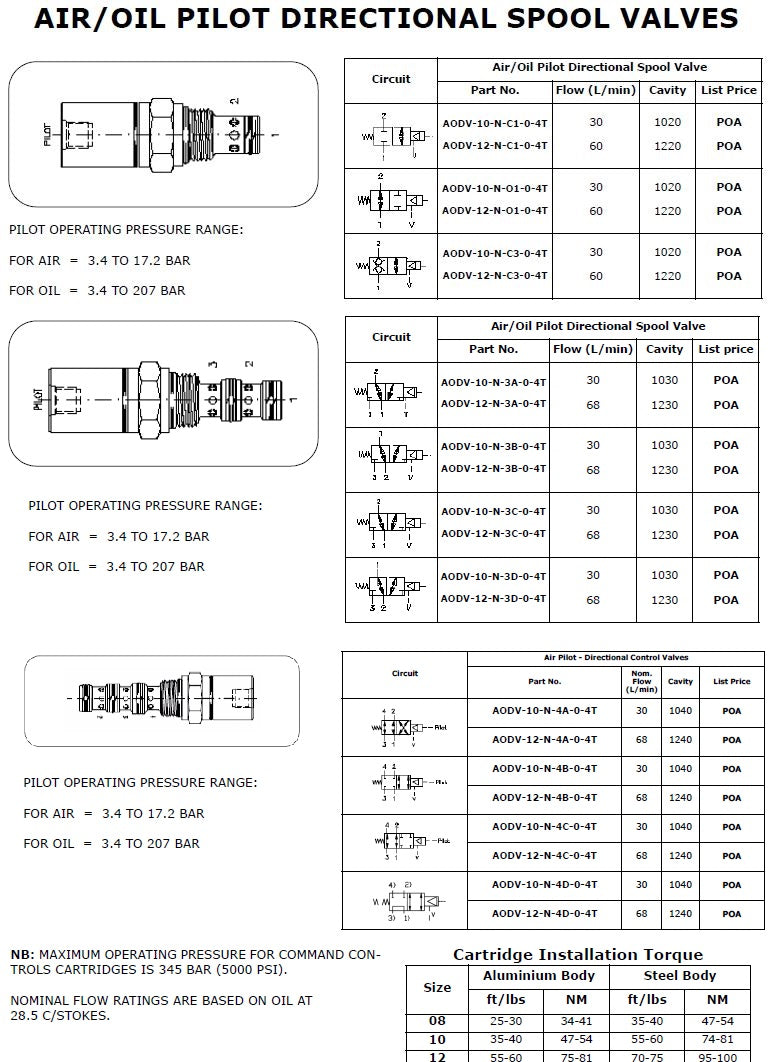

Air/Oil Pilot Directional Control Valves

This unit is a screw in cartridge style, direct acting, air/oil piloted, hydraulic directional control valve in 2/2, 3/2 and 4/2 configuration. Air/Oil Pilot ratio is 18.5:1 Refer to the specification tab below for the configuration type to suit your application. Specifications: Operating Pressure: 5,000 PSI (350 Bar) Pilot Port Pressure (AIR): 3.5 Bar to 17 Bar Pilot Port Pressure (OIL): 3.5 Bar to 207 Bar Flow - 30 LPM to 68 LPM Valve Housings: 2,500 PSI (210 Bar) = Aluminum 5,000 PSI (350 Bar) = Steel
