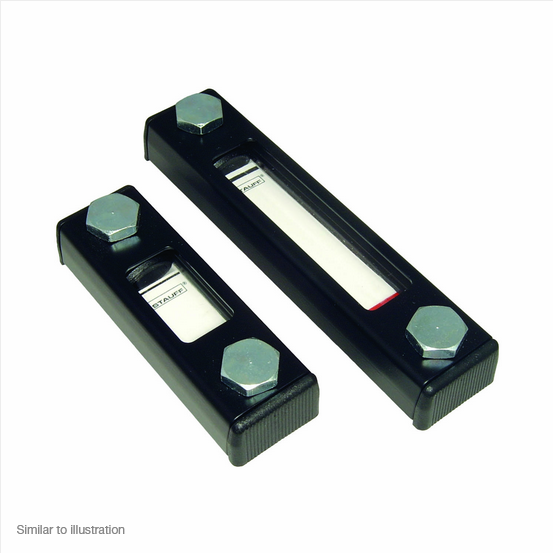

SNA Series 305 mm Level Gauges

Materials

• Housing made of Steel St 12, black powder-coated
• Sight tube and plugs made of Polyamide (PA)
• Sealings made of NBR (Buna-N®)
• Scale plate made of PVC

Technical Data

• IP 65 protection rating: Dust tight and protected against water jets
• Operating temperature range: -30°C ... +80°C / -22°F ... +176°F
• Recommended tightening torque: 8N·m / 5.9ft·lb
