Product Description:

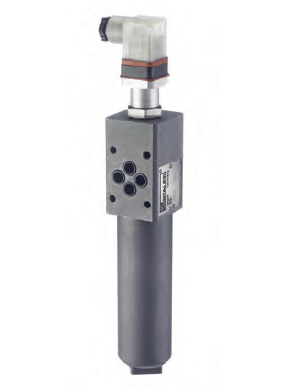

STAUFF SFZ series High Pressure Filters are designed for sandwich plate mounting in manifold block mounting hydraulic applications, with a maximum operating pressure of 315 bar / 4560 PSI. Used together with STAUFF SE series Filter Elements, a high efficiency of contaminant removal is assured. The high dirt-hold capacity of the elements ensures long service life and, as a result, reduced maintenance costs.

Technical Data:

Construction

• Designed for sandwich plate mounting

Materials

• Filter head: Free Cutting Steel
• Filter bowl: Cold Drawn Steel
• O-rings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber)
• Support ring (bowl): PTFE (Polytetrafluoroethylene)

Connecting Port

• According to ISO 4401-03-02-0-05 NG6 / DIN24340-A6 / Cetop R 35 H (Ref.: NFPA/ANSI D03)

Operating Pressure

• 315 bar / 4560 PSI

Burst Pressure

• 945 bar / 13705 PSI

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Media Compatibility

• Mineral oils, other fluids on request

O-ring for connection ports

• 9x1,7 (4x included in delivery)

Options and Accessories:

Clogging Indicator

Standard actuating pressure: 5 -0,5 bar / 72.5 -7.25 PSI ∆p, 8 -0,5 bar / 116 -7.25 PSI ∆p, Other actuating pressure settings are available upon request

Available indicators: Visual, Electrical, Visual-electrical (24 V DC, 110 V AC, 230 V AC versions)

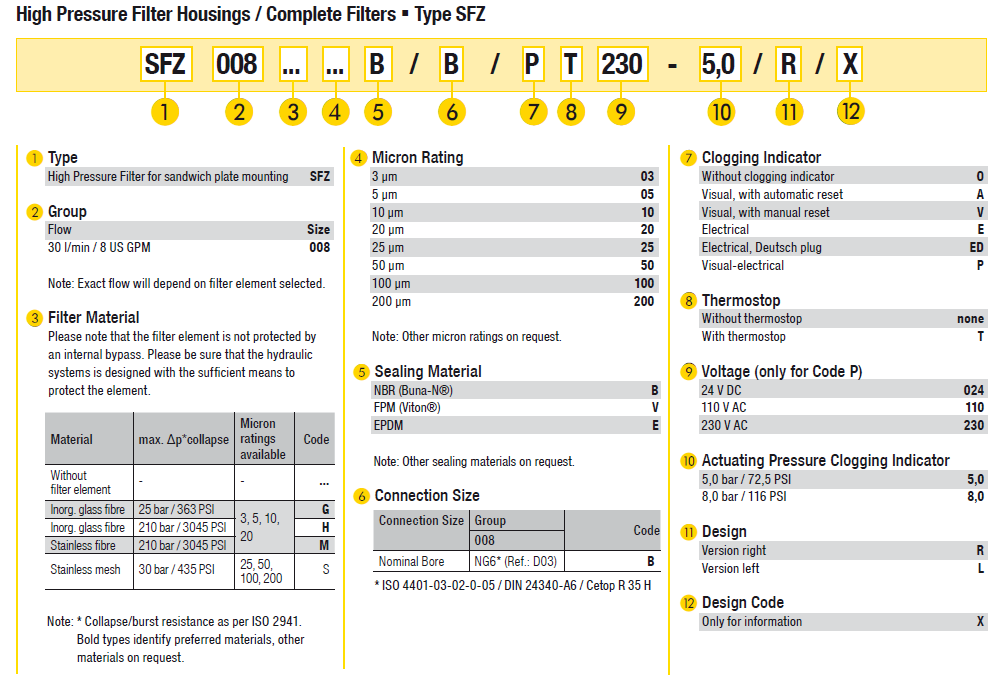

SFZ008XXXB/B/O/L 30L SANDWICH PRESS FILTER EXCLUDING ELEMENT SFZ-008-O-O-B-B-O-L 1010002796
