Product Description:

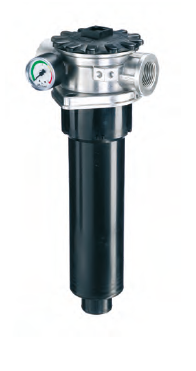

STAUFF RFB Return Line Filters are designed as tank top filters. They are mounted directly on the tank top and if 100% of the system oil is filtered they provide the optimum removal of contaminant

from the system. This provides the pump with clean oil thus reducing contaminant generated wear. Because of it’s low weight and compact design, the STAUFF RFB Filters are ideally suited for

mobile hydraulic applications. A high efficiency of contaminant removal is assured by using STAUFF RE Replacement Filter Elements. The high dirt-hold capacity of STAUFF Elements ensures a long

service life and as a result reduced maintenance costs.

Technical Data:

Construction

• Tank Top flange mounting

Materials

• Filter head: Aluminium
• Filter bowl & cap: Glass Fibre Reinforced Polyamide
• Sealings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene Propylene Diene Monomer Rubber), Other sealing materials on request

Port Connection

• BSP
• NPT
• SAE O-ring thread

Operating Pressure

• 10 bar / 145 psi

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valve

• Bypass valve (integrated in the filter element): Opening pressure 3 bar ± 0,3 bar / 43.5 PSI ± 4.35 PSI
• Other settings available on request

Clogging Indicators

• Visual clogging indicator 0 ... 4 bar / 0 ... 58 PSI coloured segments
• Electrical clogging switch, setting 2,5 bar / 36.25 PSI
• Other clogging indicators available on request

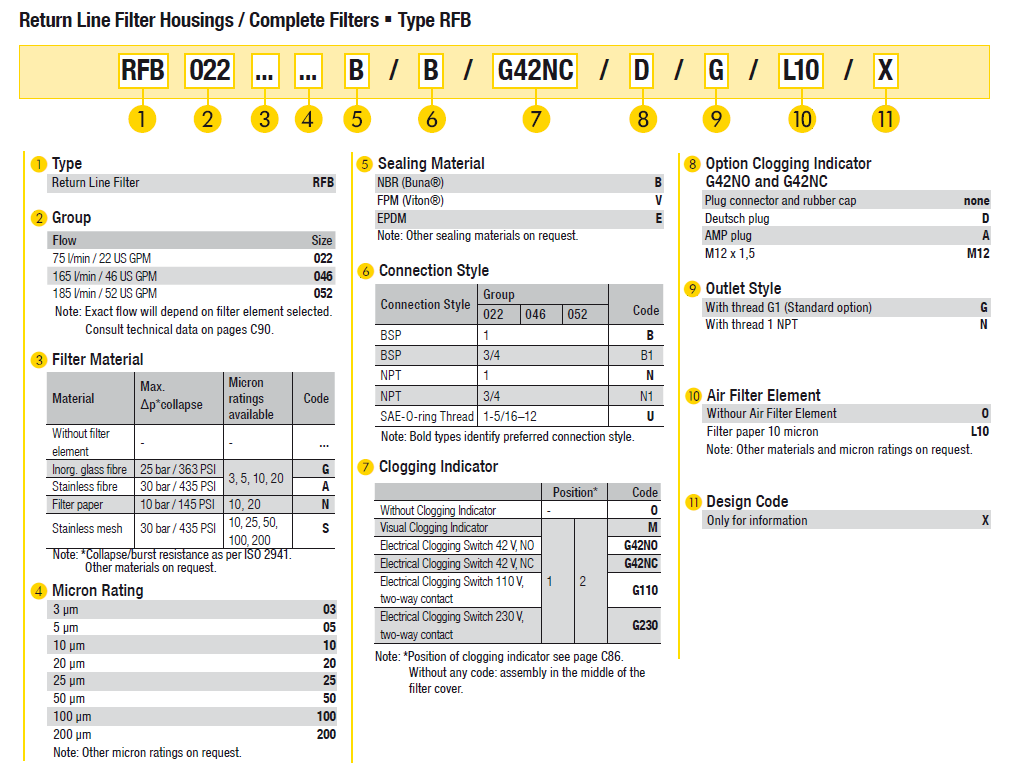

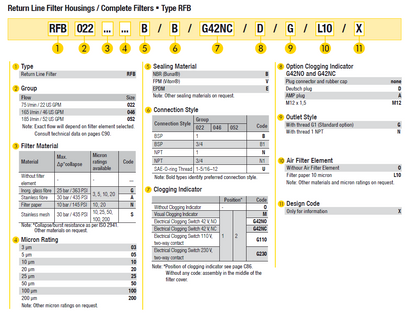

RFB052G10B/B/X/G/L10 185LPM RET.FILT ASSY-10UM w.BREATHER RFB-052-G-10-B-G16-O-G16-L10 1010021112
