Product Description:

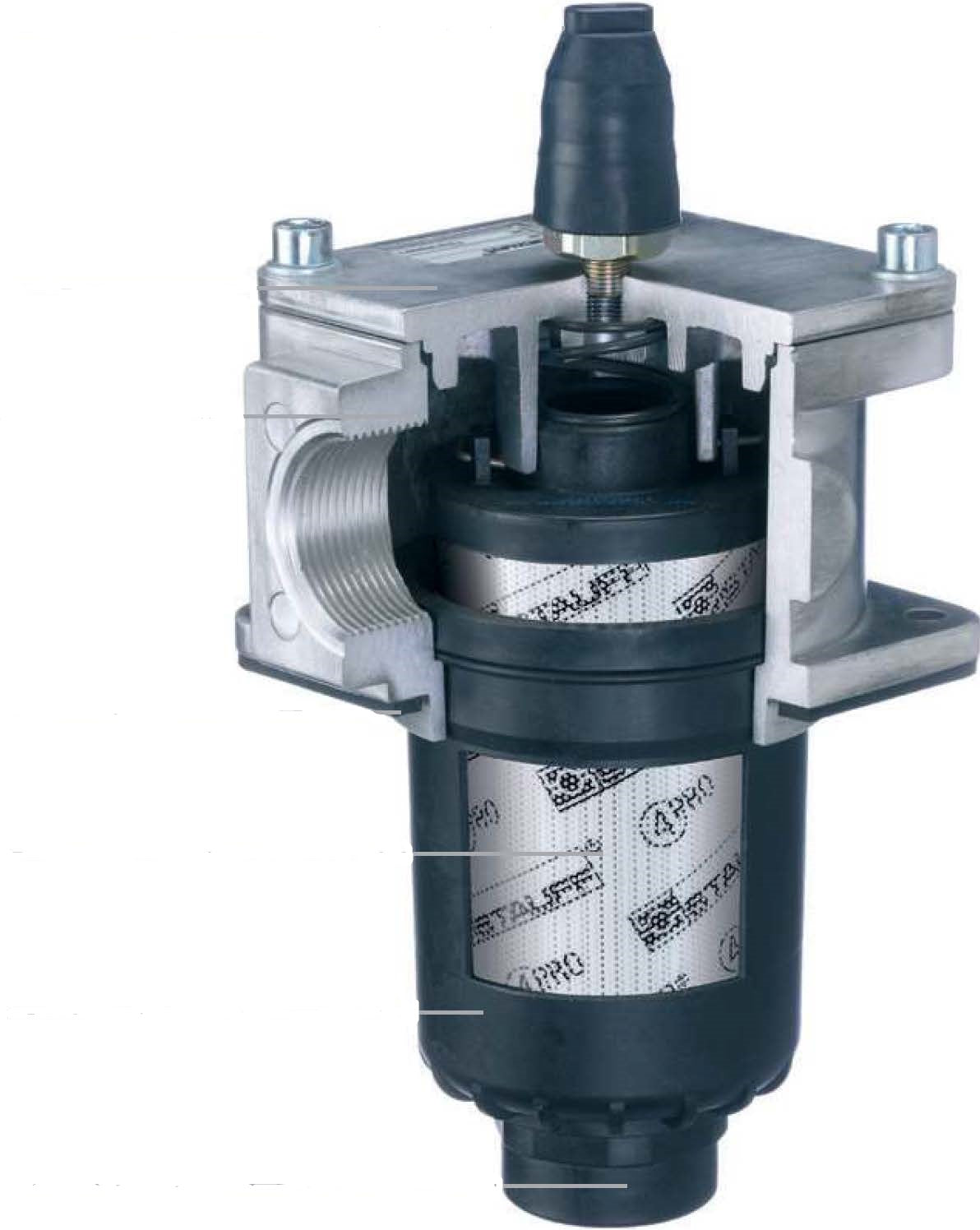

STAUFF RF Return Line Filters are designed as tank top filters. They are mounted directly on the tank top and when 100% of the system’s oil is filtered they provide the optimum removal of contaminant from the system. This provides the pump with clean oil thus reducing contaminant generated wear. The filter bowl is designed to return the oil beneath the surface thus preventing the entrainment of air by the returning oil. A high efficiency of contaminant removal is assured by using STAUFF RE Replacement Filter Elements. The high dirt-hold capacity of STAUFF Ele-ments ensures a long service life and as a result reduced maintenance costs.

Technical Data:

Construction

• Tank Top flange mounting

Materials

• Filter head: Aluminium
• Filter bowl: Glass Fibre reinforced Polyamide
• Sealings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber) Other sealing materials on request

Port Connection

• BSP
• NPT
• SAE O-ring thread
• SAE flange 3000 PSI

Operating Pressure

• 16 bar / 232 PSI

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valve

• Bypass valve (integrated in the filter element): Opening pressure 3 bar ± 0,3 bar / 43.5 PSI ± 4.35 PSI Other settings available on request

Clogging Indicators

• Visual clogging indicator 0 ... 4 bar / 0 ... 58 PSI coloured segments
• Electrical clogging switch, setting 2,5 bar / 36.25 PSI

Other clogging indicators available on request

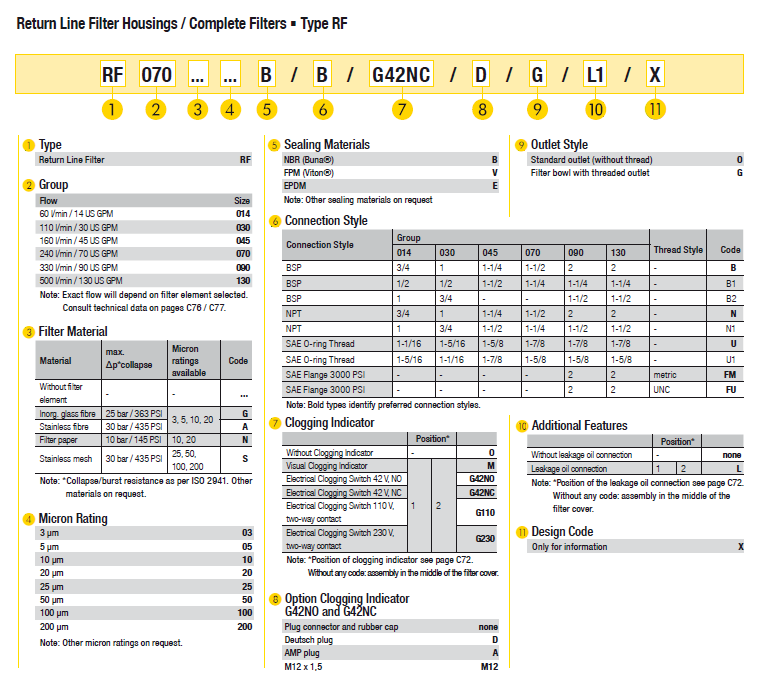

RF030N10B/BG 110 LPM T/TOP ASSY.w.10UM ELEM.G1" RF-030-N-10-B-G16-O-G16 1010020133
