VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series
VOSL/N1116 Series

VOSL/N1116 Series

Walvoil

Regular price
Price: $299.00 AUD
Regular price
List Price:
Sale price
Price: $299.00 AUD
5% off all orders over $1000 | Ends:

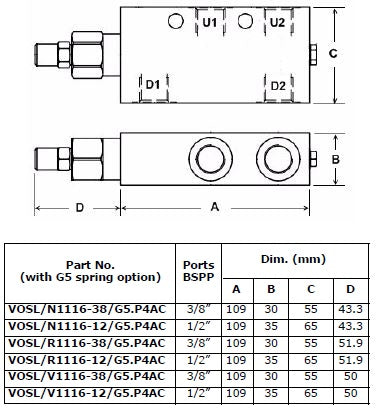

VOSL/N1116-38/G5.P4AC

style
View Cart

Collections:

Type: Line Mount Valves

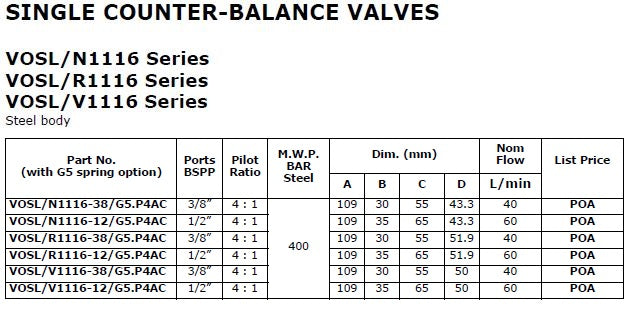

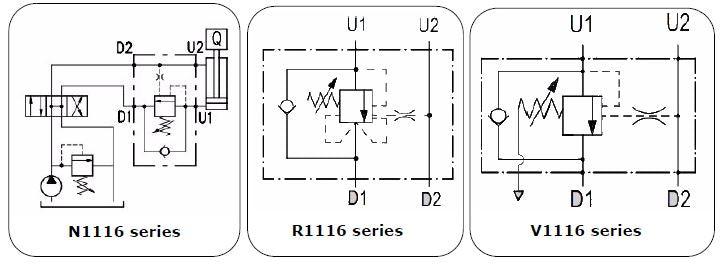

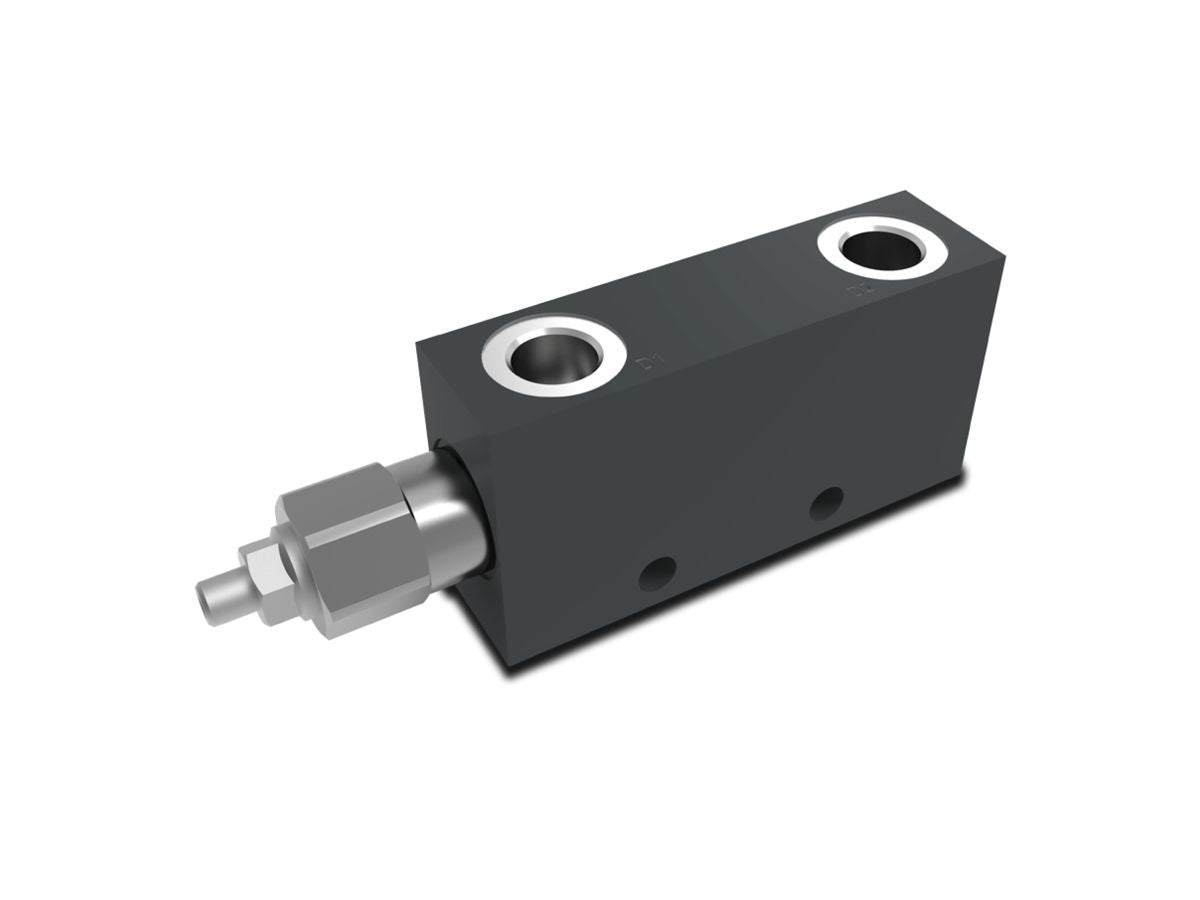

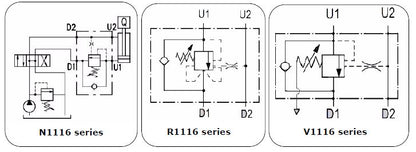

Steel Body -The 1116 series is built with zinc plated steel bodies to ensure a high level of strength and durability. These valves can reach a working pressure of 400 bar. N1116 Series - This valve controls a moving load preventing it from moving ahead of the pump and locks the load in any position on U1. It also provides static overload and thermal expansion protection when used in combination with an open centre spool valve. It permits free flow from D1 to U1 and blocks the flow from U1 to D1 until a pilot pressure generated at D2/U2 is sufficient to pilot the U1 port open. This model is sensitive to back pressure on D1 in return mode. R1116 Series - As per N1116 but is sensitive to back pressure on D1 in return mode. V1116 Series - As per N1116 but has the spring chamber isolated from any system back pressure by a seal and is vented to the atmosphere. It is ideal for use with closed centre spools.
