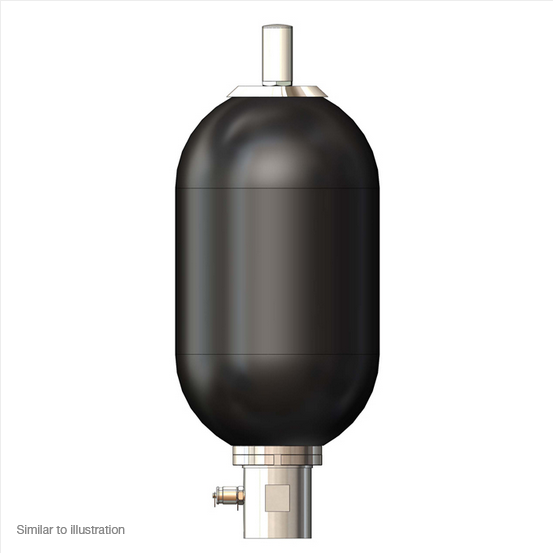

STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators
STBA-002-360A1 Series Bladder Accumulators

STBA-002-360A1 Series Bladder Accumulators

Stauff

Regular price
Price: $1,177.75 AUD
Regular price
List Price: $1,132.45 AUD
Sale price
Price: $1,177.75 AUD
5% off all orders over $1000 | Ends:

3426010613

Style
View Cart

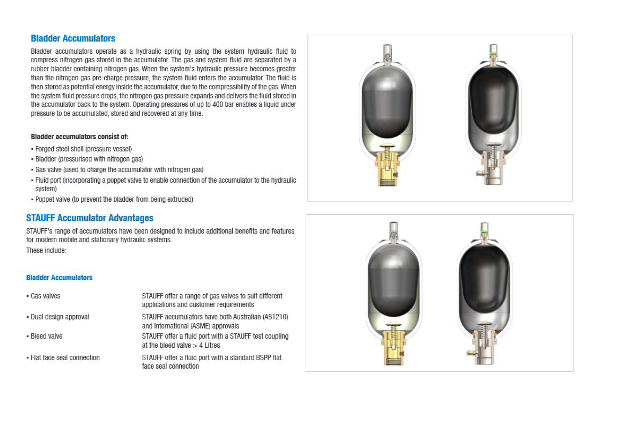

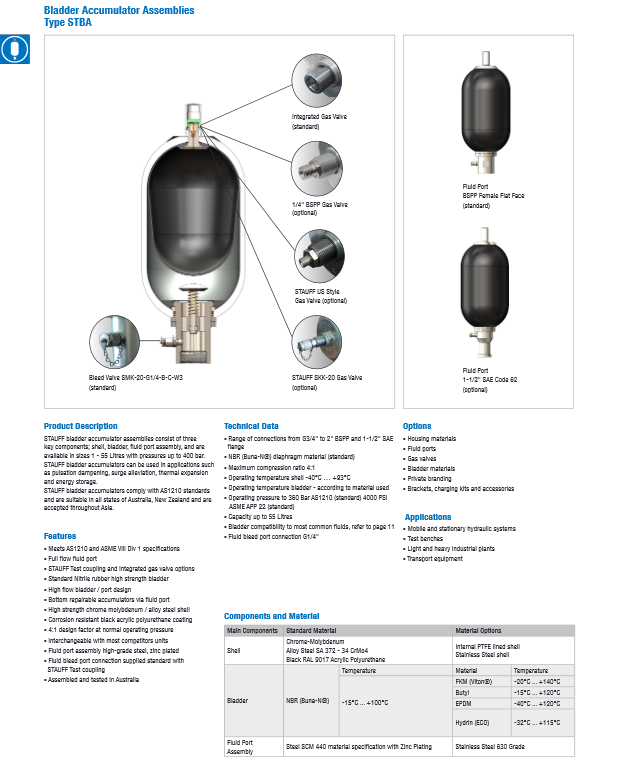

STAUFF STBA bladder accumulator assemblies consist of three key components; shell, bladder, and fluid port assembly. STAUFF bladder accumulators can be used in applications such as pulsation dampening, surge alleviation, thermal expansion and energy storage. STAUFF bladder accumulator Assemblies comply with AS1210 standards and are suitable in all states of Australia, New Zealand and are accepted throughout Asia.

Broad Specifications
  • Capacity  - 2.5 Ltr / 2.5 qtr

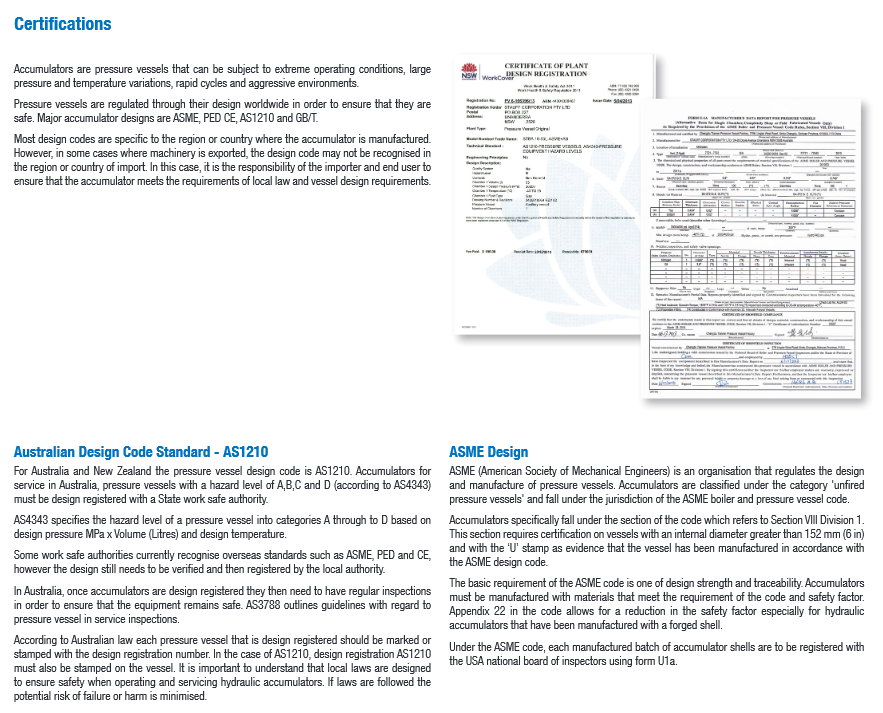

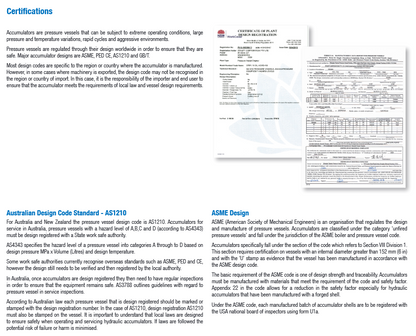

  • Pressure Rating and Design Code - AS1210 360 Bar + ASME 4000 PSI

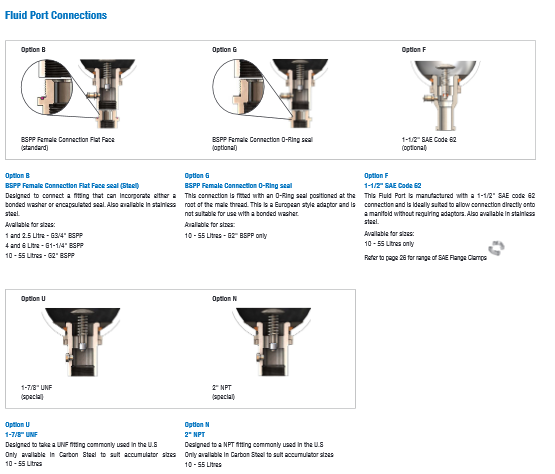

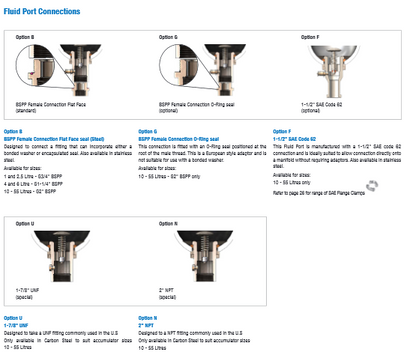

  • Fluid Port Connection - BSPP Flat Face Seal
  • Bladder Stem Size - 7/8-14 UNF
    Materials

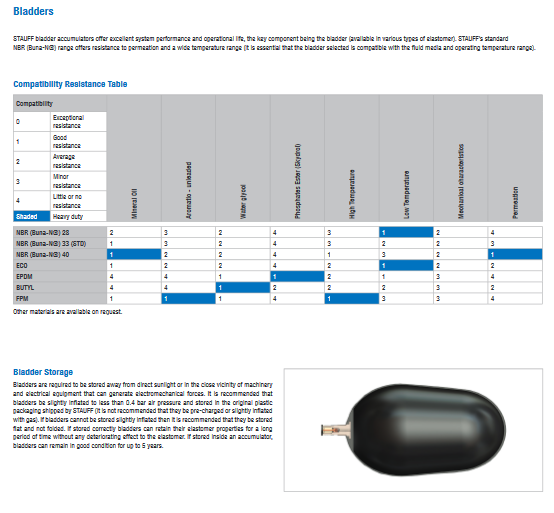

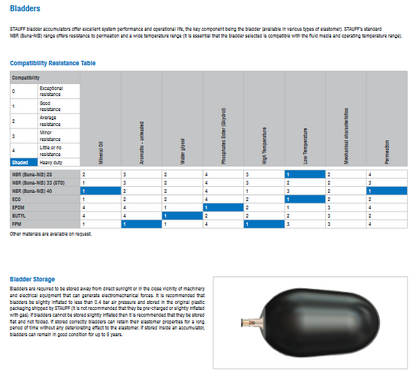

    • Bladder - NBR

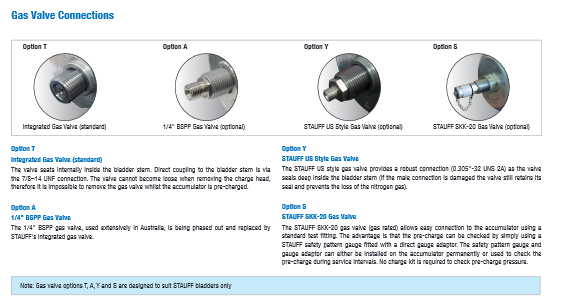

    • Surface Protection (Gas Valve) - Stainless Steel
    • Surface Protection (Bladder Stem) - Carbon Steel / Zinc Nickel
    • Surface Protection (Fluid Port) - Carbon Steel
    • Surface Protection (Shell) - Carbon Steel
