Product Description:

STAUFF SFA series Medium Pressure Filters are designed for in-line hydraulic applications with a maximum operating pressure of 160 bar / 2320 PSI. Used together with STAUFF SE series Filter Elements, a high efficiency of contamination removal is assured. The dirt-hold capacity of the elements ensures long service life, and as a result, reduced maintenance costs.

Technical Data:

Construction

• Designed for in-line assembly, with threaded mounting holes on top of the head.

Materials

• Filter head: Cast Aluminum
• Filter bowl: Aluminium
• O-rings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber)
• Support ring: PTFE (Polytetrafluoroethylene)

Port Connections

• BSP
• NPT
• SAE O-ring thread
• SAE Code 61 Flange

Operating Pressure

• SFA014/030: Max. 160 bar / 2320 PSI Max. 190 bar / 2755 PSI (according to ANSI T2.6.1. R2-2001)
• SFA045/070: Max. 150 bar / 2175 PSI Max. 171 bar / 2480 PSI (according to ANSI T2.6.1. R2-2001)

Burst Pressure

• 480 bar / 6960 PSI

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valve

• Bypass valve: Allows unfiltered oil to bypass the contaminated element once the opening pressure has been reached, a differential pressure  of 6 + 0,5 bar / 87 + 7.25 PSI ∆p is the standard setting.

Other settings available upon request.

• Reverse flow valve: Allows reverse flow through the filter head without backflushing the element.
• Non-return valve: Prevents draining of the delivery line during element change.
• Multi-function valve: Opening pressure 6 +0,5 bar / 87 +7.25 PSI

Bypass, reverse flow capability and non-return valve  combined in one valve.

Clogging Indicator

• Standard actuating pressure: 5 -0,5 bar / 72.5 -7.25 PSI ∆p Other actuating pressure settings are available upon request.
• Available indicators: Visual, Electrical, Visual-electrical (24 V DC, 110 V AC, 230 V AC versions)

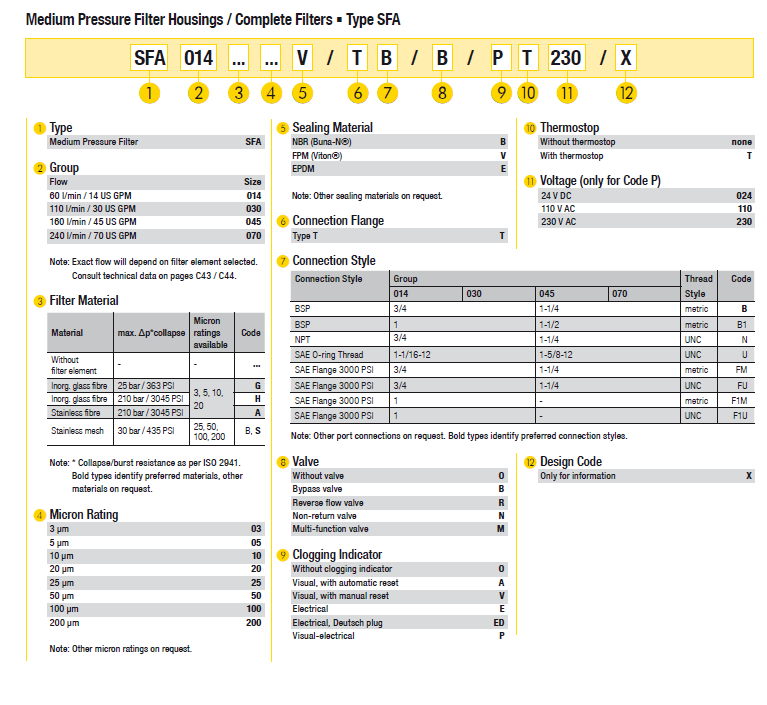

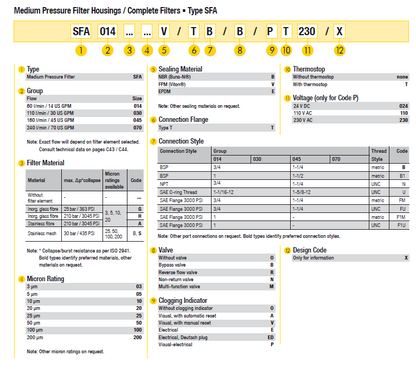

SFA070XXXB-TB/OV 240L MED. PRESS. FILTER SFA-070-O-O-B-T-G20-O-V 1010021498
