Product Description:

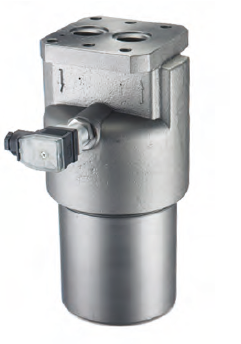

STAUFF SF-TM series High Pressure Filters are designed for manifold block mounting hydraulic applications, with a maximum operating pressure of 315 bar / 4560 PSI. Used together with STAUFF SE series Filter Elements, a high efficiency of contaminant removal is assured. The high dirt-hold capacity of the elements ensures long service life and, as a result, reduced mainte-nance costs.

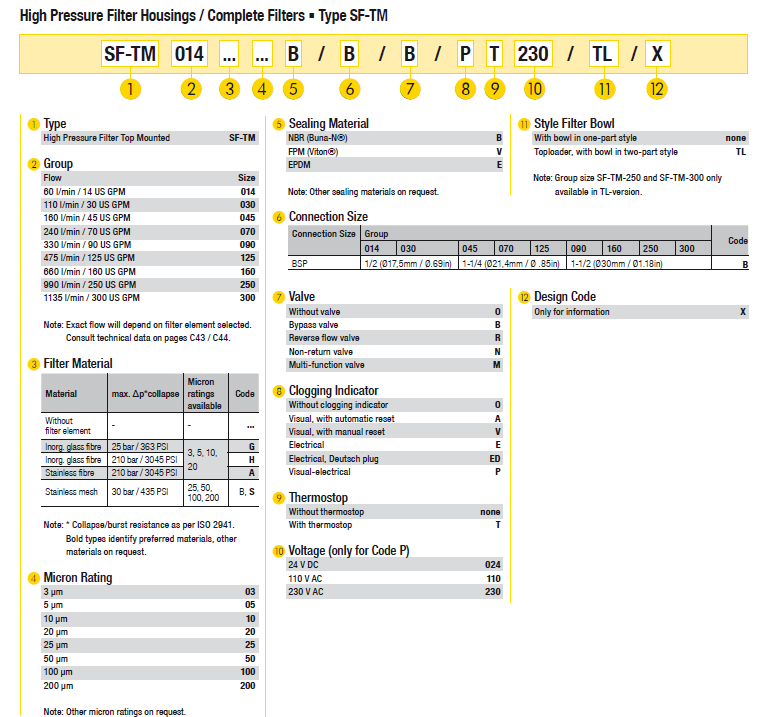

Technical Data:

Construction

• Designed for manifold mounting, with mounting holes and fluid ports on top of the head.

Materials

• Filter head: SF-TM-014-070 Free Cutting Steel, SF-TM-090-300 Spheroidal Graphite Cast Iron
• Filter bowl: Cold Drawn Steel
• O-rings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene-Propylene-Diene-Monomer-Rubber)
• Support ring: PTFE (Polytetrafluoroethylene)

Operating Pressure

• 315 bar / 4560 PSI

Burst Pressure

• 945 bar / 13705 PSI

Temperature Range

• -10 °C ... +100 °C / +14 °F ... +212 °F

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valve

• Bypass valve: Allows unfiltered oil to bypass the contaminated element once the opening pressure has been reached, a differential  pressure of 6 + 0,5 bar / 87 + 7.25 PSI ∆p is the standard setting.  Other settings available upon request.
• Reverse flow valve: Allows reverse flow through the filter head without backflushing the element.
• Non-return valve: Prevents draining of the delivery line during element change.
• Multi-function valve: Opening pressure 6 +0,5 bar / 87 +7.25 PSIBypass, reverse flow capability and non-return valve combined in one valve.

Clogging Indicator

• Standard actuating pressure: 5 -0,5 bar / 72.5 -7.25 PSI ∆p Other actuating pressure settings are available upon request.
• Available indicators: Visual, Electrical, Visual-electrical (24 V DC, 110 V AC, 230 V AC versions)
