Product Description:

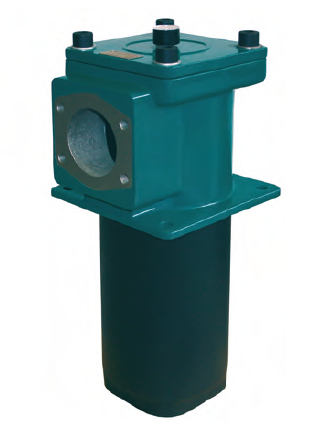

STAUFF RFS Carbon Steel Return Line Filters are designed as tank top or in-line filters. They are mounted directly on the tank top and if 100% of the system oil is filtered, they provide the optimum

removal of contaminants from the system. This provides the pump with clean oil thus reducing contaminant generated wear. The filter bowl is designed with a connection, threaded or flanged, for

extending the return oil beneath the surface thus preventing the entrainment of air. A high efficiency of contaminant removal is assured by using STAUFF RE Replacement Filter Elements. The high dirt-hold capacity of STAUFF Elements ensures a long service life and as a result reduced maintenance costs.

Technical Data:

Construction

• Tank Top mounting or in-line mounting

Materials

• Filter Housing: Carbon Steel
• Sealings: NBR (Buna-N®), FPM (Viton®), EPDM (Ethylene Propylene Diene Monomer Rubber), Other sealing materials on request

Port Connection

• BSP
• SAE flange 3000 PSI

Flow Rating

• Up to 1135 l/min / 300 US GPM

Operating Pressure

• 25 bar / 365 PSI

Proof Pressure

• 37,5 bar / 545 PSI

Temperature Range

• -10 ºC ... +100 ºC / +14 °F ... +212 ºF

Media Compatibility

• Mineral oils, other fluids on request

Options and Accessories:

Valves

• Bypass valve: Opening pressure 3 bar ± 0,3 bar / 43.5 PSI ± 4.35 PSI

(integrated in the filter element)

Other settings available on request

Clogging Indicators

• Visual clogging indicator 0...4 bar / 0...58 PSI coloured segments
• Electrical clogging switch, setting 2,5 bar / 36.25 PSI
• Other clogging indicators available on request

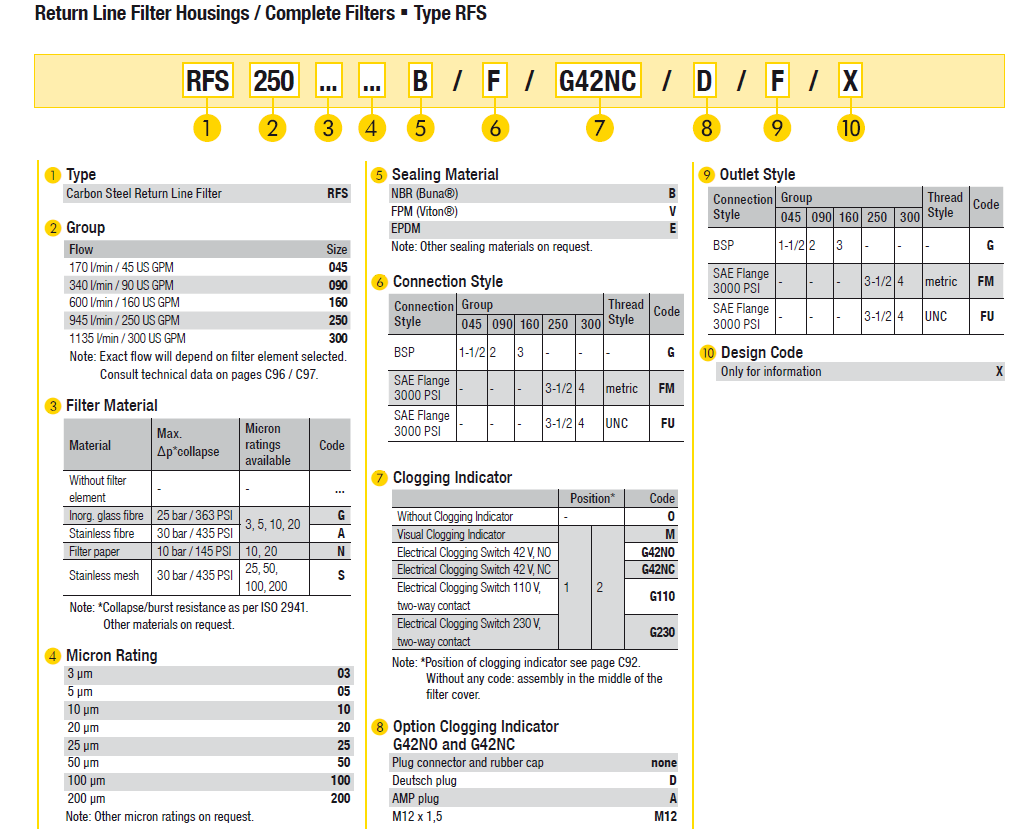

RFS250B/FF 950L RETURN FILTER RFS-250-O-O-B-C356M-O-C356M-BK 1010020283
