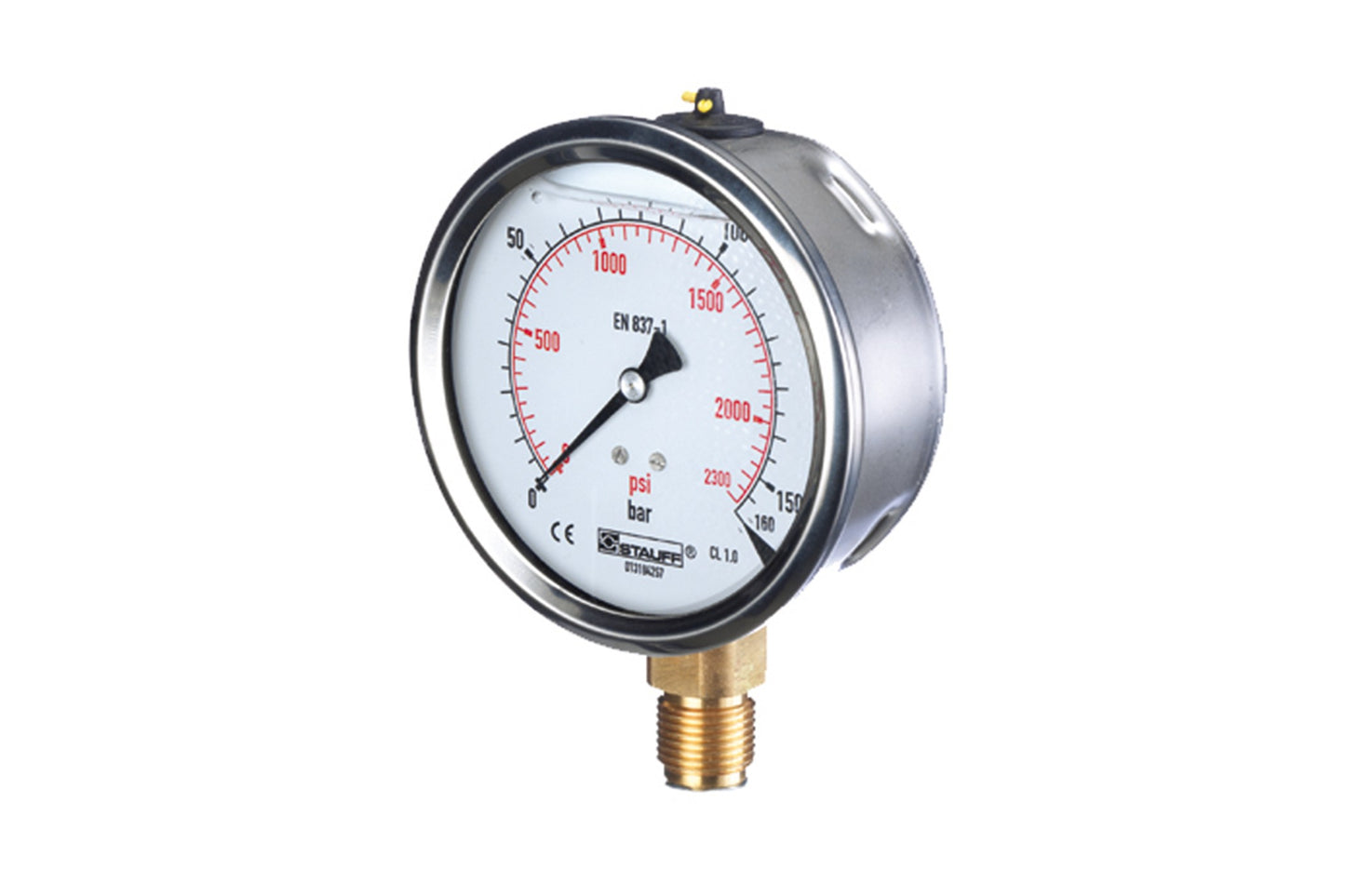

SPG-100 Series Stem Mounted Analogue Pressure Gauges

Area of Application

ƒ Mechanical pressure measurement

Features

ƒ Suitable for hydraulic oil and gaseous media
compatible with copper based alloys
ƒ Available in nominal sizes 63 and 100 mm / 2.5 and 4 in
ƒ Thread form: for BSP (G1/4 and G1/2),
NPT (1/4 NPT and 1/2 NPT), SAE (7/16–20 UNF)
ƒ Stainless Steel (1.4301) housing
ƒ Acrylic sight glass
ƒ Glycerine filled
ƒ Standard dual scales with pressure indication
in bar and PSI
U-bolt mounting kit  and Gauge protection Boot sold Separately

Accessory Options

U-Bolt Mounting Kit

Gauge Protection Boot
