MS100SCNTR14TGK Pressure Switch

Product Description:

The SPW-SD Mechanical SPDT Pressure Switch is available in a variety of pressure ranges. This durable unit has an adjustable set point that is easily changed by using the adjustment screw which is located under the protective cap.

Features:

• SPDT switching function
• Pressure ranges available up to 344 bar / 5000 PSI
• G1/4 and 1/4 NPT process connection
• NBR (Buna-N®) sealings
• Steel, zinc plated
• Spade terminal connection

Options:

• G1/8, 1/8 NPT and 7/16–20 UNF process connections
• FPM (Viton®) and EPDM sealings on request
• Flying leads with shrink tubing, fl ying leads, Deutsch connector, weather pack connector female/male and IP option on request
• 316 Stainless Steel

Technical Data:

Materials

• Body: Steel, zinc plated or 316 Stainless Steel
• Connector: Polyamide

Electrical Data and Output

• Switching function: SPDT
• Cycle rate: 20 CPM
• Mechanical life: 2000000 operations § Max. electrical rating: 5 A at 125/250 V AC, 5 A resistive / 3 A inductive at 28 V DC

Permissible Temperatures

• NBR (Buna-N®): -9 °C ... +85 °C / +15 °F ... +185 °F
• FPM (Viton®): -18 °C ... +85 °C / 0 °F ... +185 °F
• EPDM: -23 °C ... +85 °C / -10 °F ... +185 °F

Process Connections

• G1/8, G1/4, 1/8 NPT, 1/4 NPT and 7/16–20UNF

Electrical Connection

• DIN EN 175301-803 form A (DIN 43650-A)

Protection Rating

• IP 65 protection rating: Dust tight and protected against water jets

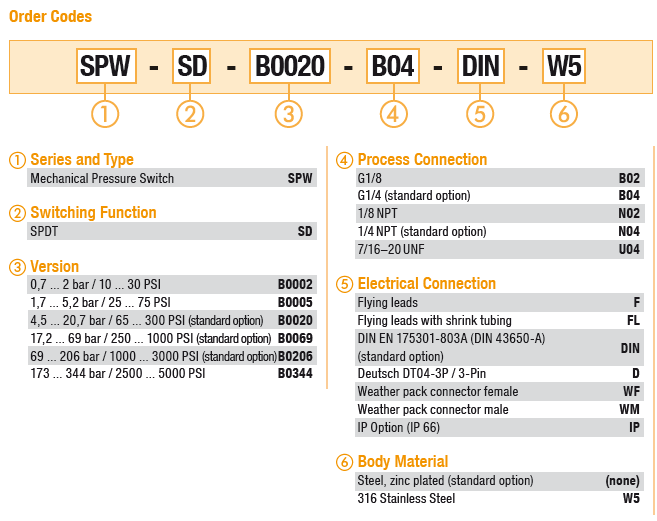

MS100SCNTR14TGK  PRESSURE SWITCH 10-100 BAR G1/4" C/W CAP 13 SPW-DM-B00100-B04/B-SD-C65-W88Z-CG 1810011267
